7
DV MODE OPERATION

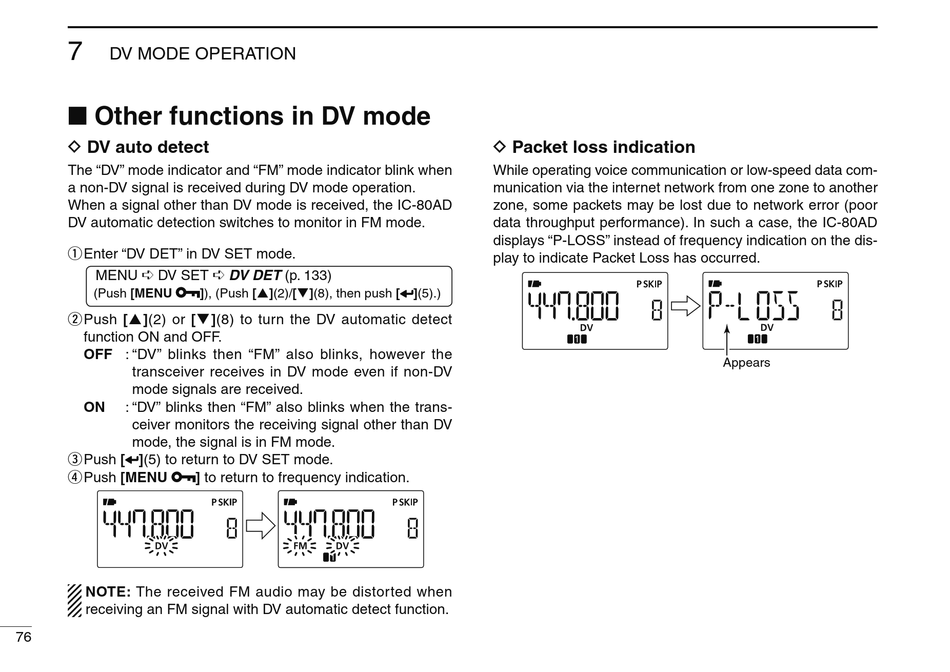

Other functions in DV mode
D DV auto detect
The "DV" mode indicator and "FM" mode indicator blink when
a non-DV signal is received during DV mode operation.
When a signal other than DV mode is received, the IC-80AD
DV automatic detection switches to monitor in FM mode.
q Enter "DV DET" in DV SET mode.
MENU DV SET
(Push [MENU
w Push [
](2) or [
function ON and OFF.
OFF : "DV" blinks then "FM" also blinks, however the
transceiver receives in DV mode even if non-DV
mode signals are received.
ON : "DV" blinks then "FM" also blinks when the trans-
ceiver monitors the receiving signal other than DV
mode, the signal is in FM mode.
e Push [ ](5) to return to DV SET mode.
r Push [MENU
NOTE: The received FM audio may be distorted when
receiving an FM signal with DV automatic detect function.
76
DV DET (p. 133)
]), (Push [ ](2)/[ ](8), then push [ ](5).)
](8) to turn the DV automatic detect
] to return to frequency indication.
D Packet loss indication
While operating voice communication or low-speed data com-
munication via the internet network from one zone to another
zone, some packets may be lost due to network error (poor
data throughput performance). In such a case, the IC-80AD
displays "P-LOSS" instead of frequency indication on the dis-
play to indicate Packet Loss has occurred.
Appears
