Marking The Basic Carrier Screw Holes - AT&T MERLIN LEGEND Release 3.0 Installation Manual

Installing the Basic Carrier
To install the basic carrier, follow the steps below:
1 Mark the screw-hole locations on the backboard, using the basic carrier
or the template supplied with the plastic preassembled backboard as a
guide. See Figure 2-5.
Make sure the carrier is level before marking the holes.
Drill a pilot hole in the center of each of the four screw-hole marks.
2
Anchor the screws approximately halfway into the backboard.
3
Position the carrier on the screws and slide the carrier to the left.
4
5 Tighten the screws.

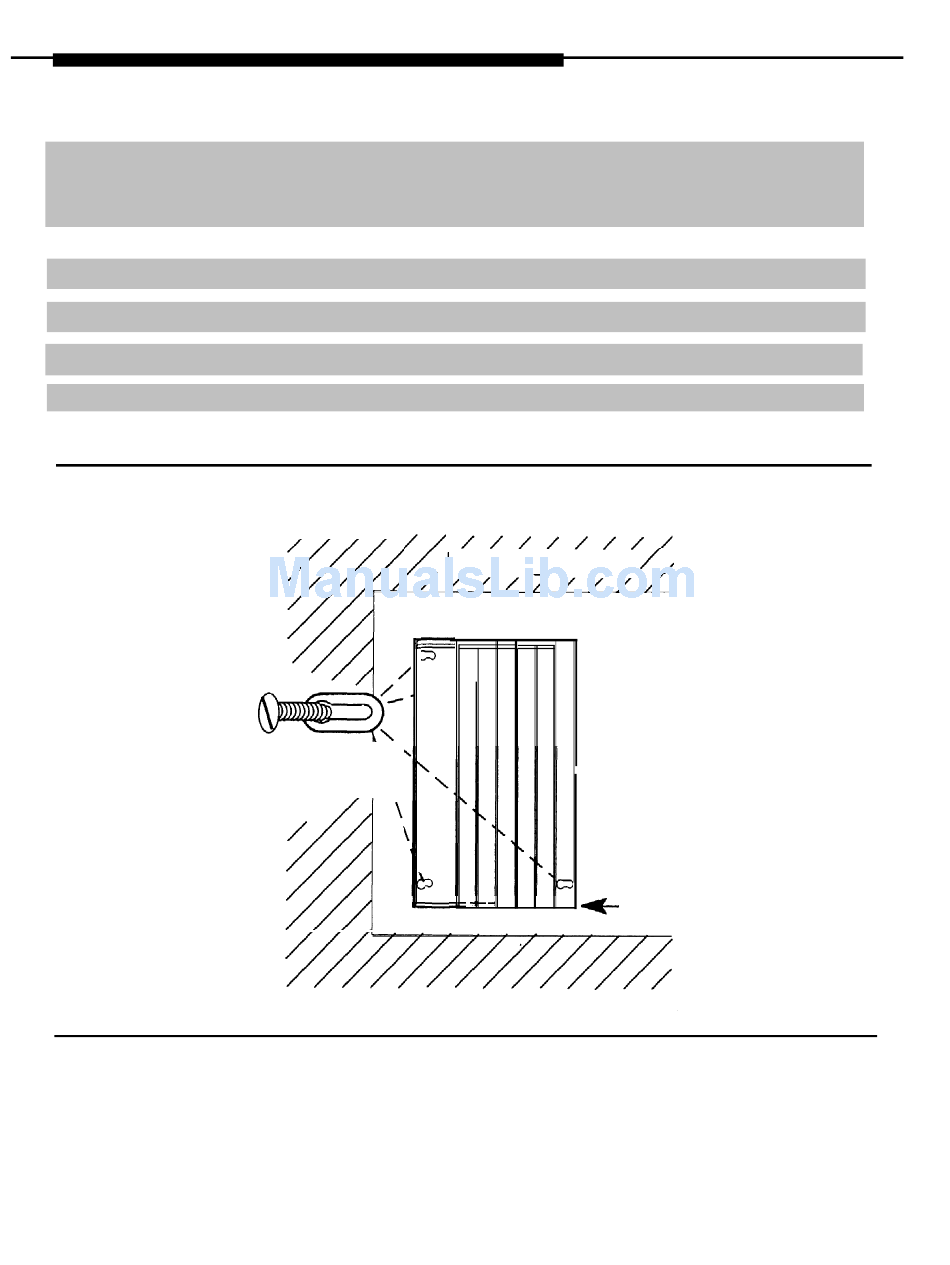

Figure 2-5. Marking the Basic Carrier Screw Holes
2-18 Installing the Control Unit
Mounting '\ '
Screw \
\
Mounting Surface
Backboard
B a s i c
Carrier
