Module Problems

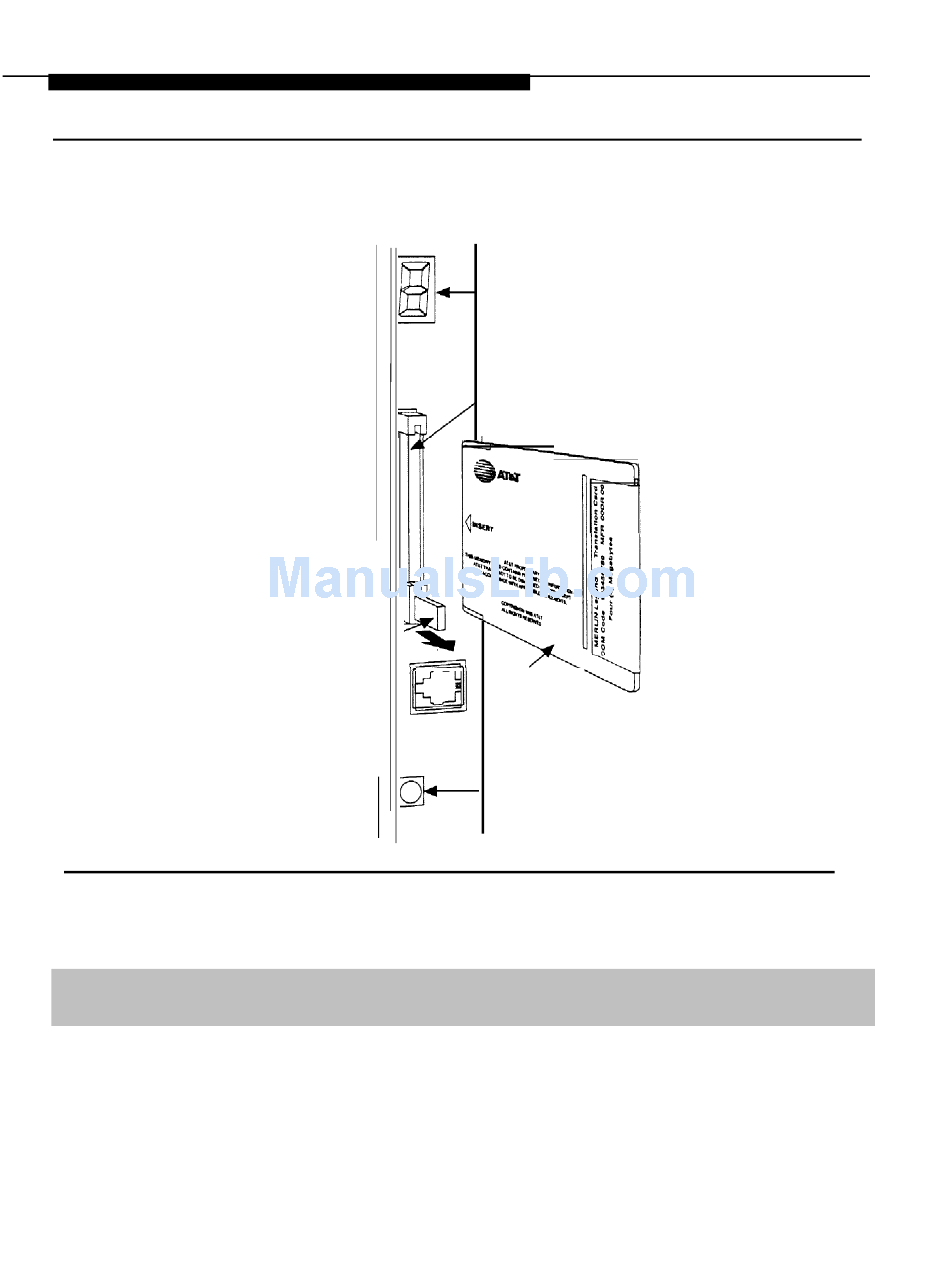

Figure 4-7. Inserting the Upgrade Memory Card
To upgrade or reinstall circuit module firmware, follow the steps below.
1
Insert an upgrade memory card containing the circuit module firmware
into the PCMCIA interface slot on the processor board.
See Figure 4-7.
4-62 Control Unit Problems
PROCESSOR
MODULE
Push in
to remove
Memory
Card
Error/Status Code
Display
PCMCIA
Interface Slot
Memory
Card
Alarm Status
LED
