Modifying the Processor
for Key Mode
PROCESSOR CIRCUIT BOARD
Front
Rear
OPEN
CLOSED
(KEY)
(PBX)

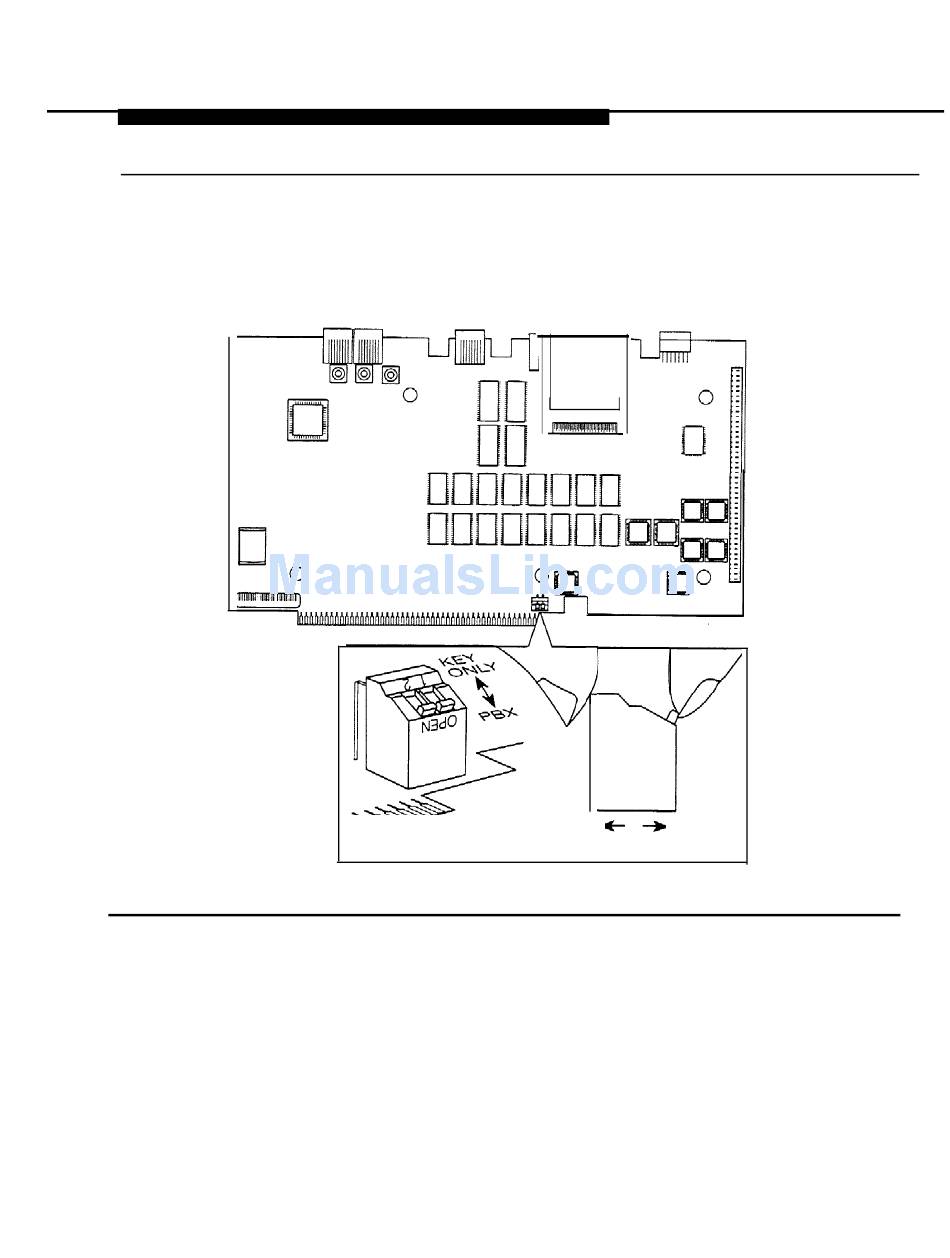

Figure 9–7. Changing the Key Mode Switch Position to Closed
Upgrading the System 9-13
