Installing the Basic Carrier
To install the basic carrier, follow the steps below:
1 Mark the screw-hole locations on the backboard, using the basic carrier
or the template supplied with the plastic preassembled backboard as a
guide. See Figure 2–5.
Make sure the carrier is level before marking the holes.
2 Drill a pilot hole in the center of each of the four screw-hole marks.
3 Anchor the screws approximately halfway into the backboard.
4 Position the carrier on the screws and slide the carrier to the left.
5 Tighten the screws.
Mounting
Screw

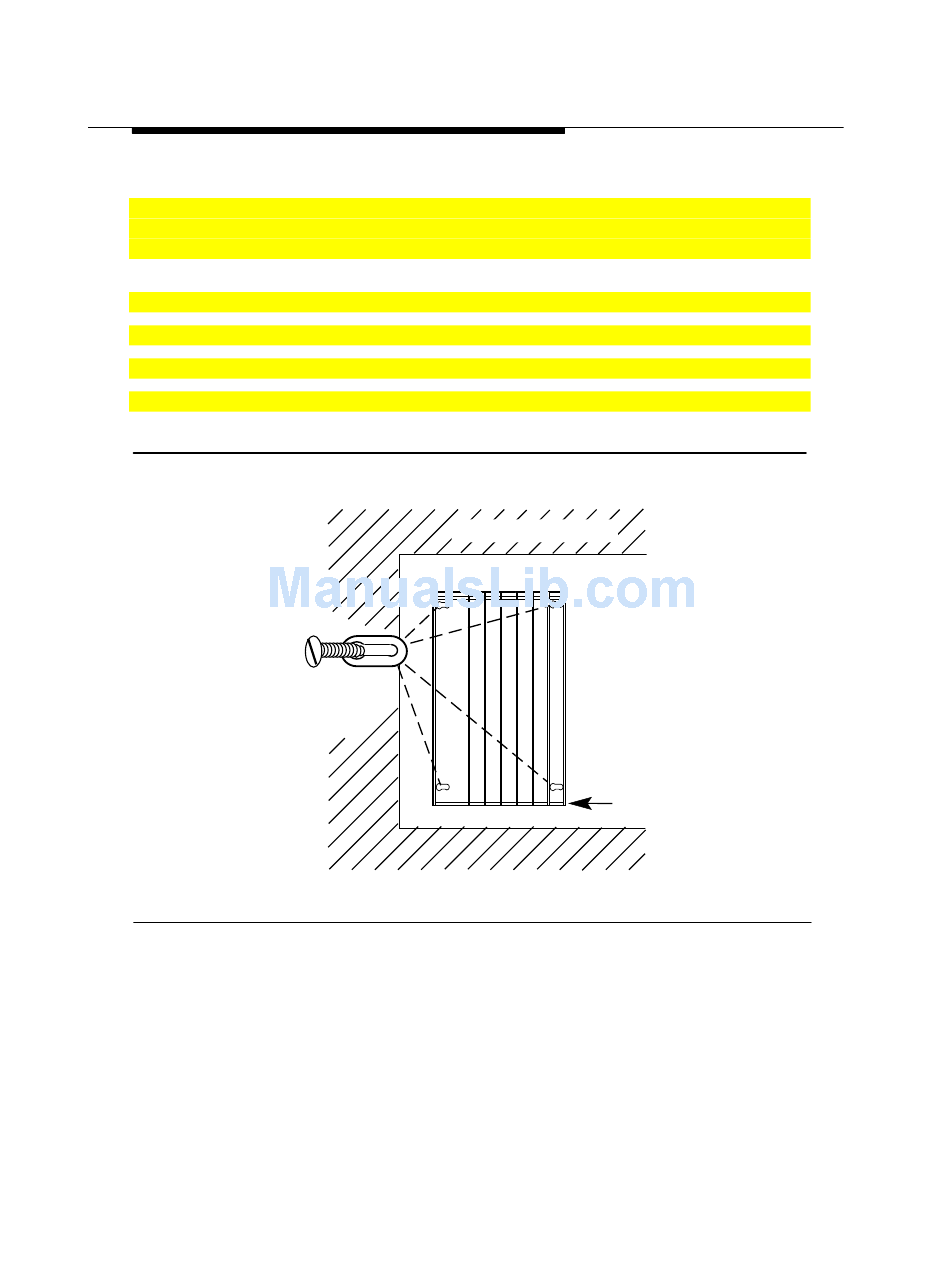

Figure 2–5. Marking the Basic Carrier Screw Holes
2–18
Installing the Control Unit
Mounting Surface
Backboard
Basic
Carrier
