Installing Expansion Carriers

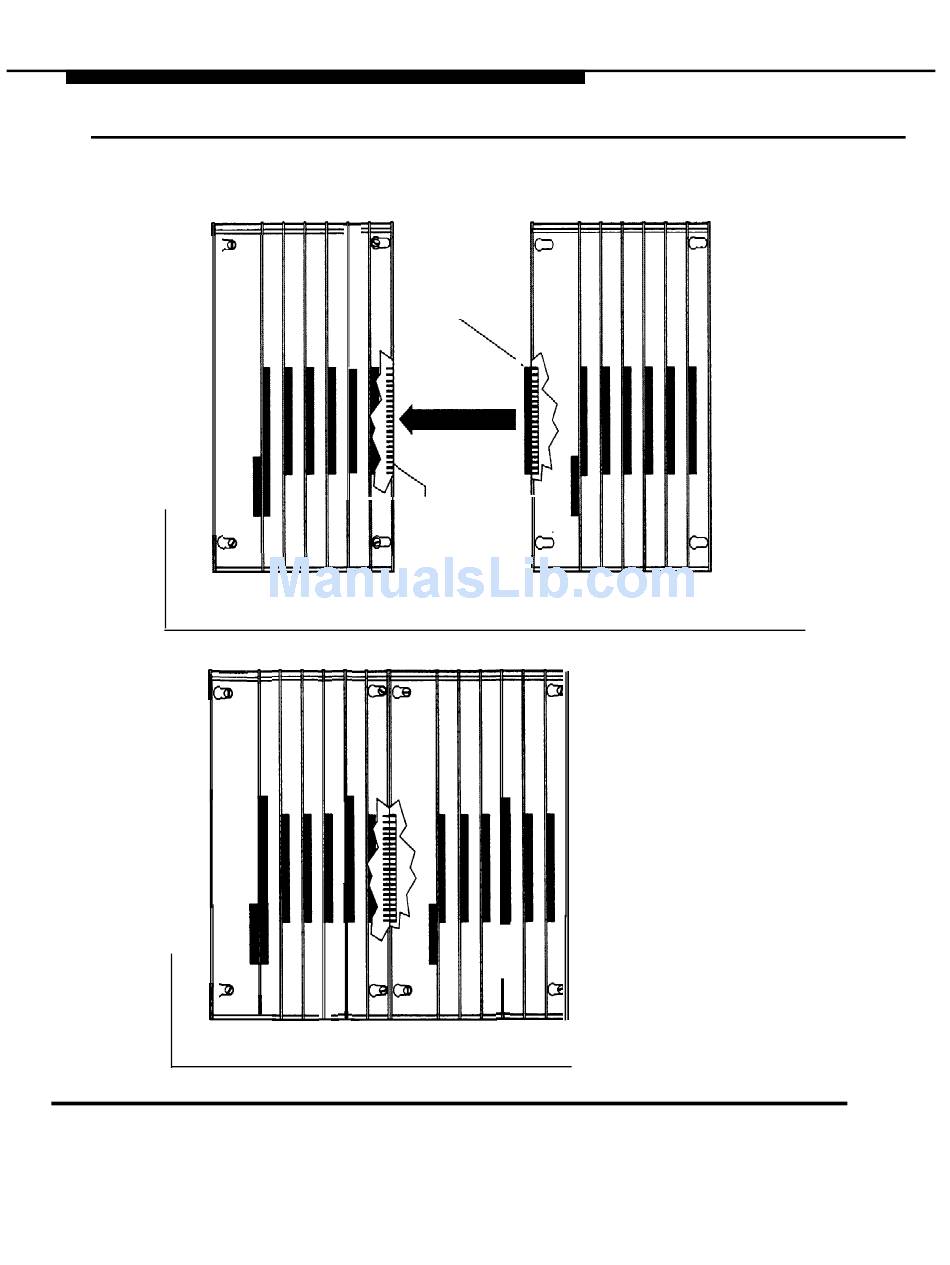

Figure 2-9. Connecting the Carriers
2-28 Installing the Control Unit
BASIC CARRIER
CONNECTOR
CARD
EXTENDER
(under the
breakaway tab)
BACKBOARD
BASIC CARRIER
EXPANSION CARRIER
BACKBOARD
EXPANSION CARRIER
