Adjusting The Deskstand Height - AT&T MERLIN LEGEND Release 3.0 Installation Manual

Installing Multi-Function Modules

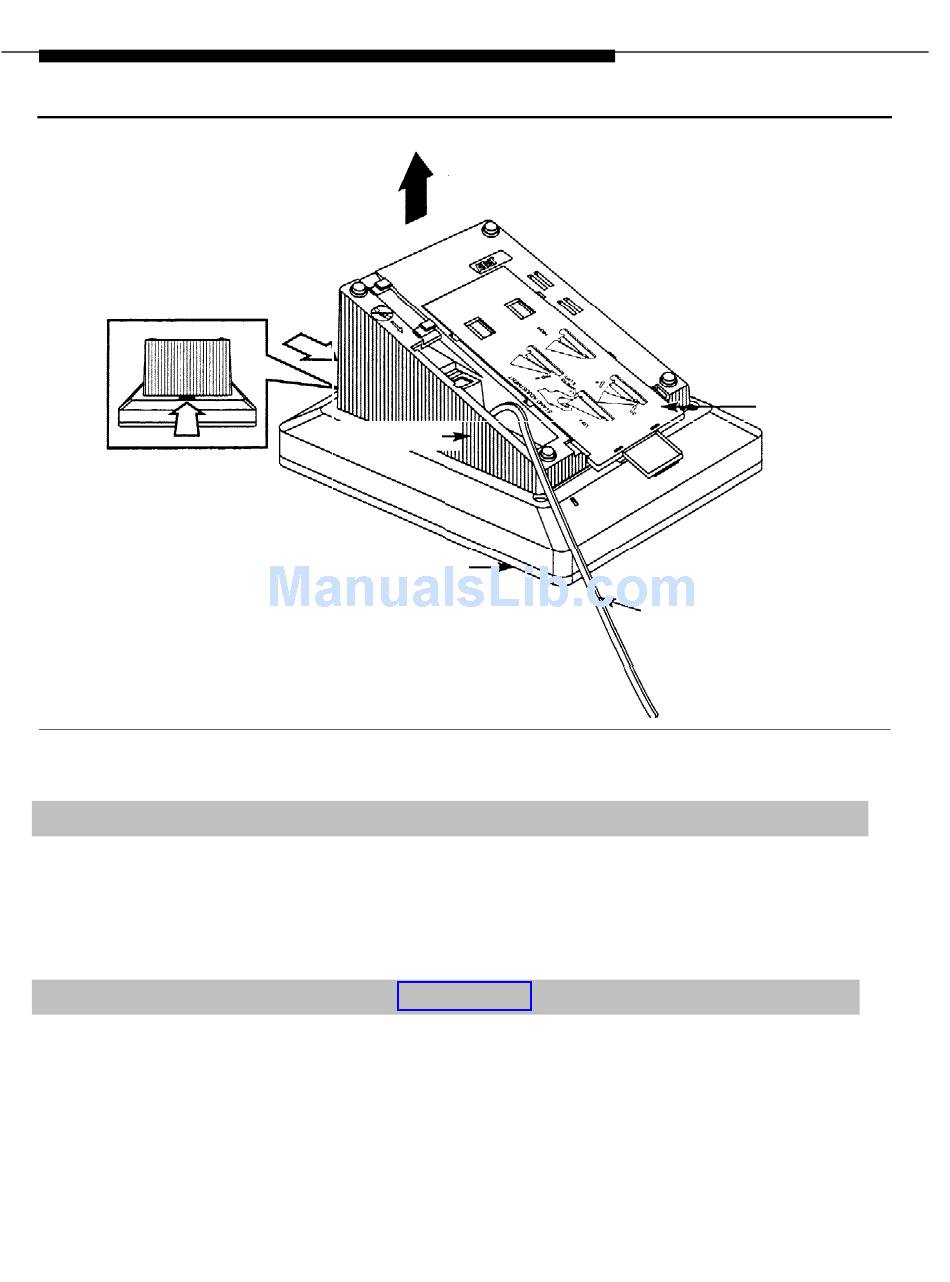

Figure 3-18. Adjusting the Deskstand Height
11 Adjust the deskstand height. See Figure 3-18.
a To change the deskstand's height from low to high, press the top rear
center of the deskstand to release the tab.
b Pull the deskstand up and insert the tab into the slot in the module cover.
c To readjust the stand, see the instructions on the bottom of the card tray.
12 Power up the telephone. See Figure 3-19.
a Plug the D8W cord from the telephone into the 8-conductor (large)
modular jack of the 400B or 400B2 adapter.
3-20 Installing Telephones and Adjuncts
Pull Up
Press
Center Tab
Deskstand
Telephone
B a s e
Card
Tray
Line
Cable
