Connecting a Printer to the Control Unit

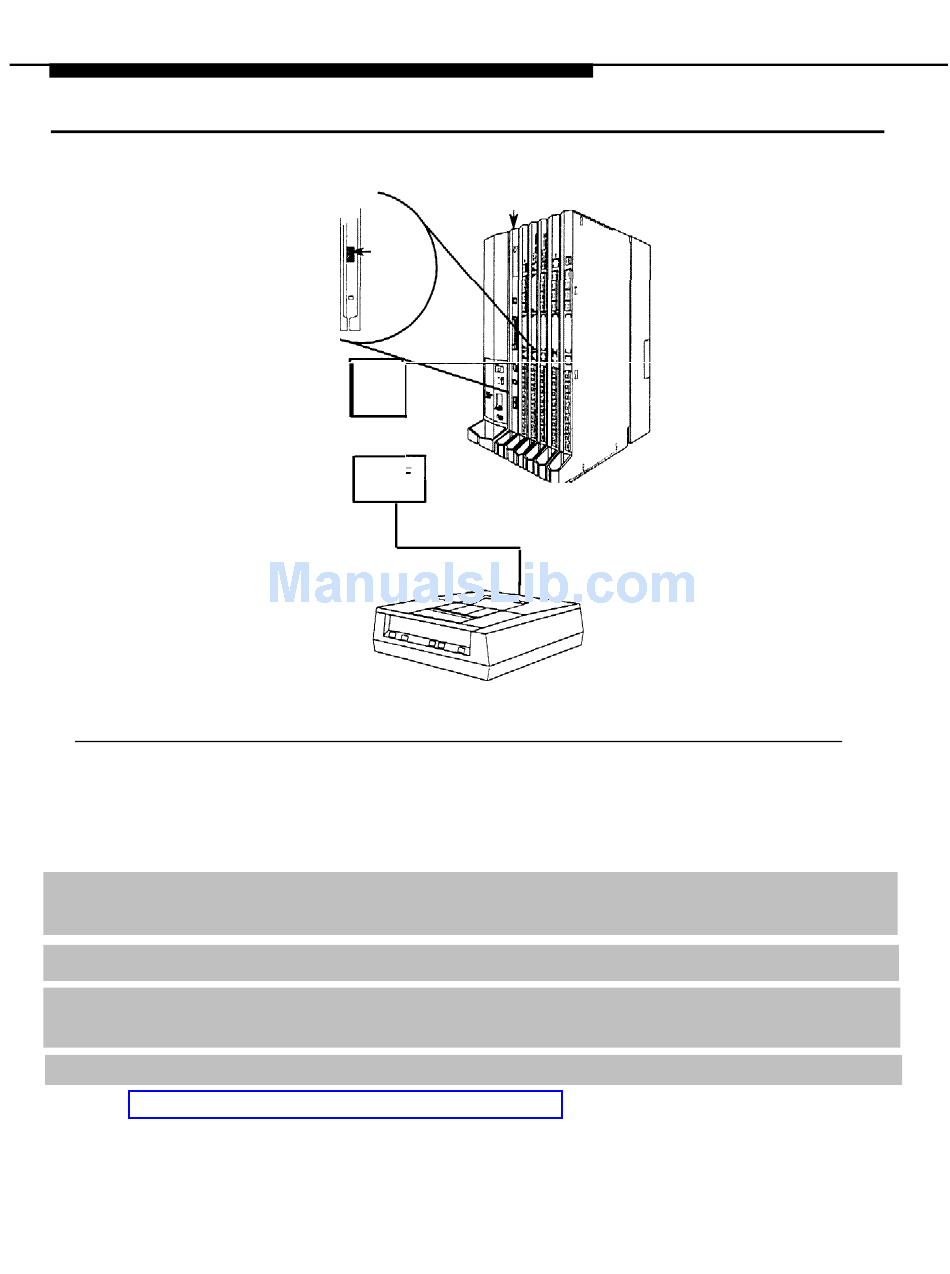

Figure 5-5. Connecting a Printer Within 50 ft. (15.2 m)
To connect a printer within 50 ft. (15.2 m), follow the steps below. Refer to
Figure 5-5.
1 Plug the short end of a Z200A EMI cord into the SMDR jack on the control
unit.
2 Plug the other end of the Z200A EMI cord into a 355AF or 355A adapter.
3 Plug the female end of the adapter into the 25-pin male connector on the
printer's interface cable, or into the serial port on the printer.
4 Set the appropriate printer options for SMDR.
See "Setting Printer Options and DIP Switches" for instructions.
5-16 Installing the PC, CAT, or Printer
S M D R
J a c k
Z200A
E M I
F i l t e r
3 5 5 A F
Adapter
Control Unit
EIA-232-D
SMDR Printer
