Installing the Power Supply
CAUTION:
Do not connect the power cord until the entire control unit is assembled.
AC Power Cord
Ground Wire
Attach
Ferrite Cores
(Open Position)

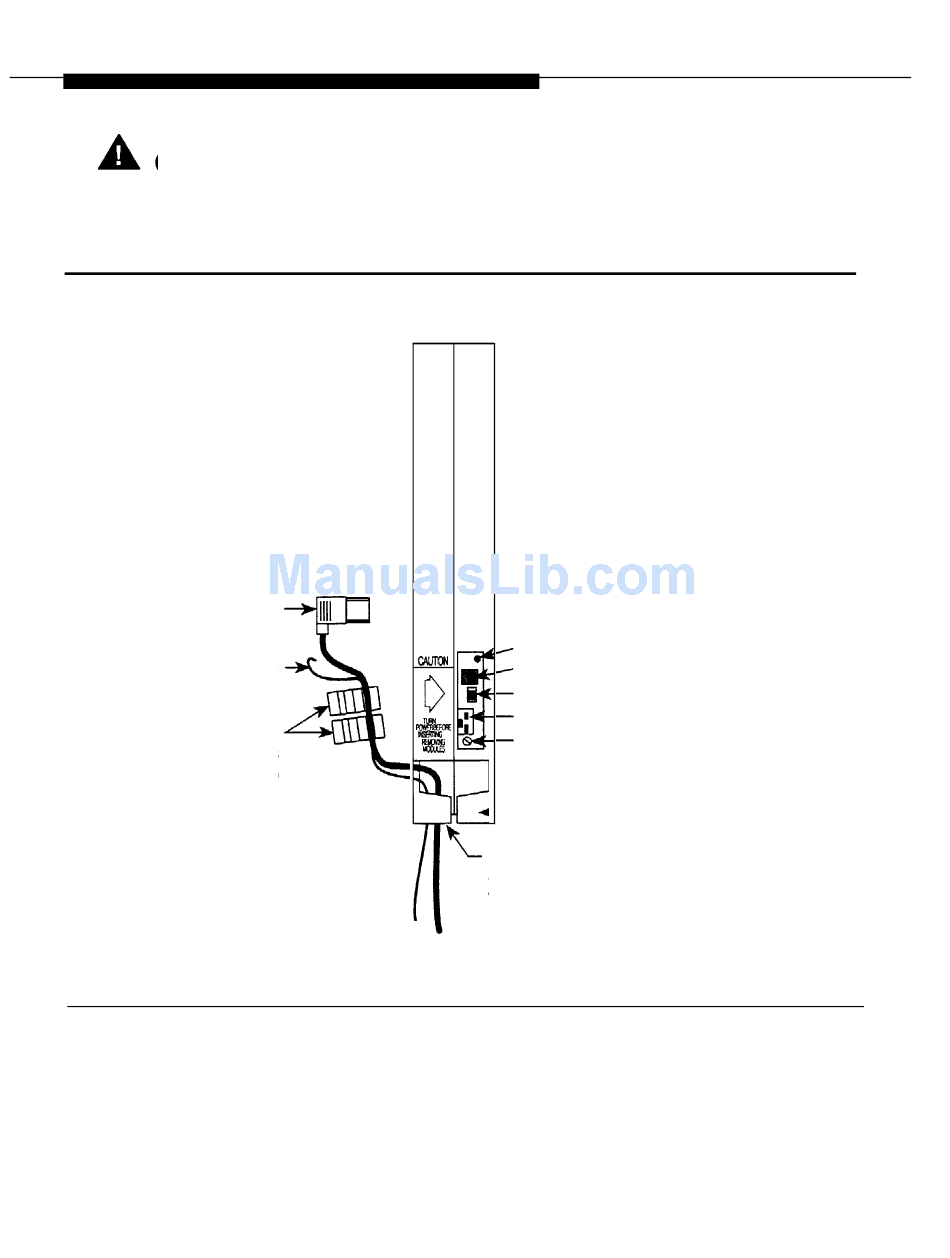

Figure 2-7. Installing the Ferrite Cores
2-24 Installing the Control Unit
POWER SUPPLY MODULE
On/Off Power Indicator (Green LED)
-48 VDC Auxiliary Power Input Jack
On/Off Switch
AC Power Input
Grounding Screw
Wire Manager
Feed AC Power Cord and
Ground Wire through
Wire Manager
