9 Connecting the Monitor, Keyboard,
Mouse, and UPS

Introduction

This chapter provides the instructions for connecting a monitor, keyboard, mouse
and Uninterruptible Power Supply (UPS) to the rear of the HP NetServer
LXr 8500.
The I/O Riser board on the I/O baseboard, inside the HP NetServer, provides the
circuitry and a connector for the video, mouse, serial (2), parallel, and keyboard
ports at the rear of the chassis. See Figure 9-1.
Connecting the Monitor, Keyboard, Mouse, and
UPS
To connect the peripheral control devices and the UPS to the HP NetServer refer
to the following procedure:
1. Connect the monitor, keyboard and mouse to the HP NetServer using the
connections provided on the rear of the chassis. See Figure 9-1.

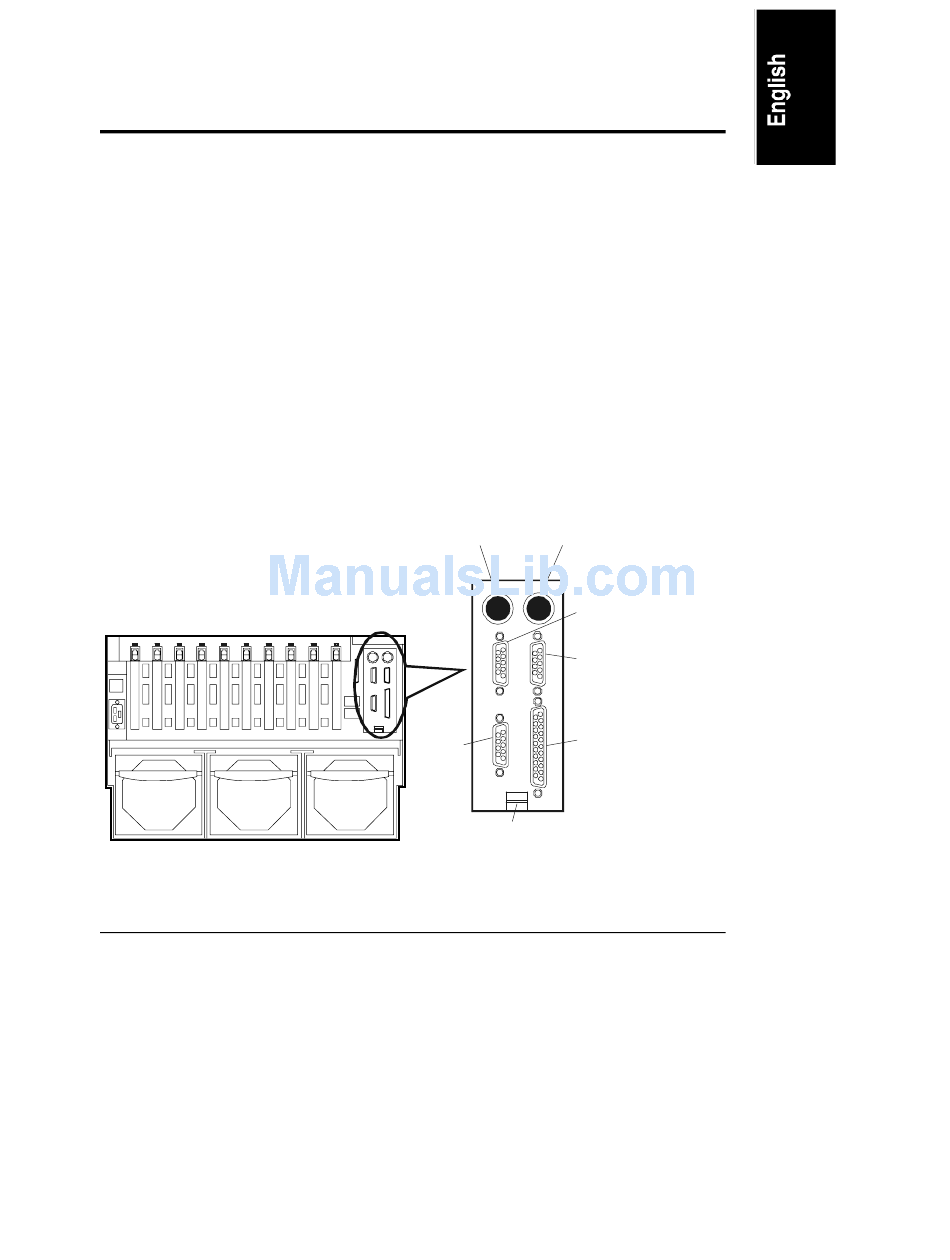

Figure 9-1. Connection Ports (rear of chassis)
Keyboard Mouse
Serial Port B
Serial Port A
LPT1
VGA
USB
Not Used
