16. Align the notches on the DIMM with the notches on the slot.
17. Hold the DIMM, as shown in Figure 5-6, with connector edge pointing
straight down into the connector (at a 90 angle to the memory board).
18. Insert the DIMM carefully into the desired slot.
19. Press down firmly with both thumbs on the DIMM's edges to ensure it
goes into the slot.
The retaining clips grasp the DIMM automatically if it is inserted properly.
CAUTION Do not rock the SDRAM DIMM into place, but apply firm and
even pressure. If a gap exists between the retaining clips and
the DIMM module, remove the DIMM and repeat steps 15-19.
20. If necessary, repeat Steps 12-19 to install all remaining DIMMs for the
desired memory configuration, including the second memory board.
NOTE
If using Dual memory boards, ensure you have installed
identical DIMM(s) in the same DIMM slots on the both
memory boards, before re-installing the memory boards into
the HP NetServer and restoring it to normal operation.
56

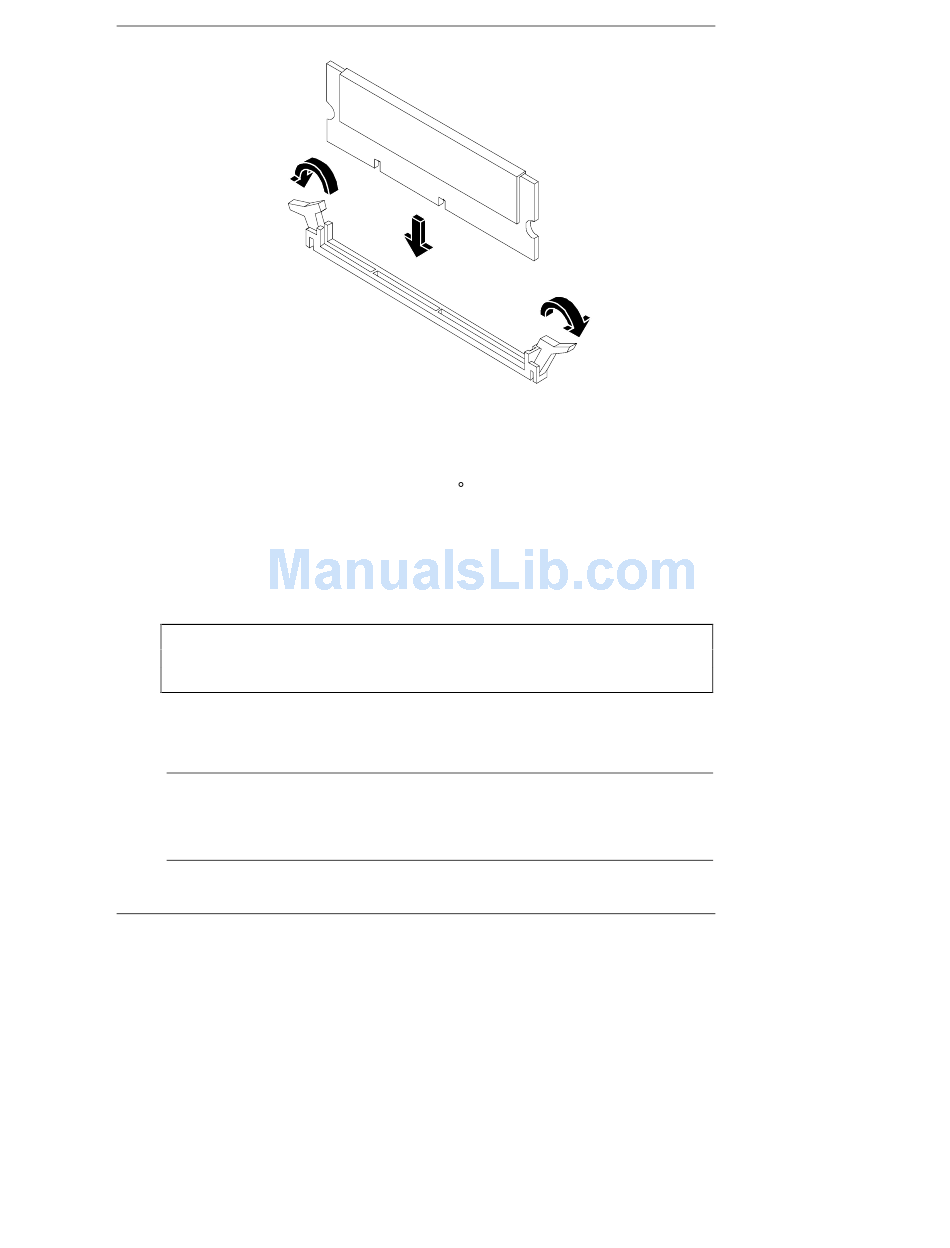

Figure 5-6. Installing a DIMM Module
Installing Additional Memory
