Chapter 6

I/O Baseboard Slots

All accessory boards plug into the 10 slots on I/O baseboard at the rear of the HP
NetServer's chassis. All 10 PCI slots support both Non-Hot Plug and Hot Plug
PCI boards. The PCI boards must have hot plug compliant software drivers to be
PCI Hot Plug capable. See Figure 6-1.
Battery
Configuration
Switch Block
10 9 8 7 6
P10-P9 P8-P7
+3.3 VDC +3.3 VDC
66/33 MHz
66/33 MHz
Bus 3
Bus 2
Six PCI slots (P1-P6) support full-length 32 or 64-bit boards at a clock rate
of 33 MHz. These slots only support boards with +5 VDC power and
Universal boards. These slots have keys in the upper half of the board slot
to prevent boards without +5 Volt power from being inserted into the slots.
NOTE
Universal boards automatically switch to accept power from a
+5.0 or +3.3 VDC source and have a key slot in the connector
to allow installation in any of the 10 PCI slots.
64
SCSI A
SCSI B
5 4 3 2 1
64-bit
P6-P3 P2-P1
+5 VDC
+5 VDC
33 MHz 33 MHz
Bus 1
Bus 0
Default

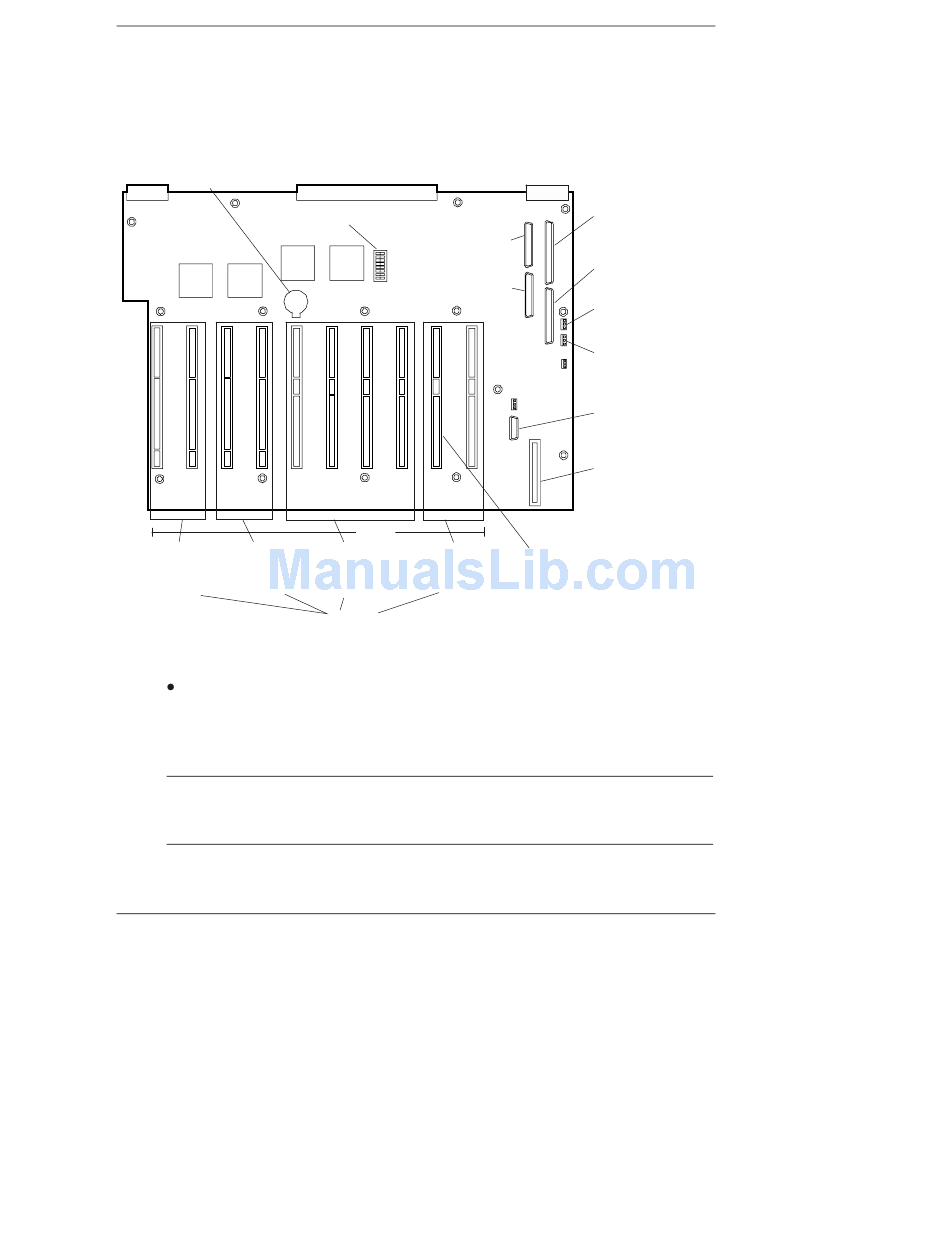

Figure 6-1. HP NetServer I/O Baseboard
Installing Additional Boards
IDE (CD-ROM)
Flexible Disk
Drive
2
(J1F1)
I C
Remote Control
Board Cable
2
Auxiliary I C
PCI LED
Display
Cable
I/O Riser
Slot
Remote Control
Board must be
in slot P2.
