Chapter 7
Left Processor
Carrier Board
1
Left Processor
Module Slots
The processor modules are installed into the unused slots on the processor carrier
boards as needed and all empty slots on both processor carrier boards must have a
terminator installed. See Tables 7-1 and 7-2 and "Processor Configuration
Guidelines" earlier in this chapter for the order of processor placement.
4-Way Configuration
The four-way configuration shown in Figure 7-2 is the minimum standard
configuration shipped and is provided with:
l
1 Processor Module (min)
l
7 Terminators (3 in left carrier and 4 in right carrier)
l
2 Processor Carrier Boards
Both cache coherency filters are installed on the 4-way configuration. All four
slots on the right processor carrier board require terminations.
78
Right Processor
Carrier Board
2
3
4
1
J6A1
Right Processor
Module Slots
Left Cache
Right Cache
Coherency Filter
Coherency Filter

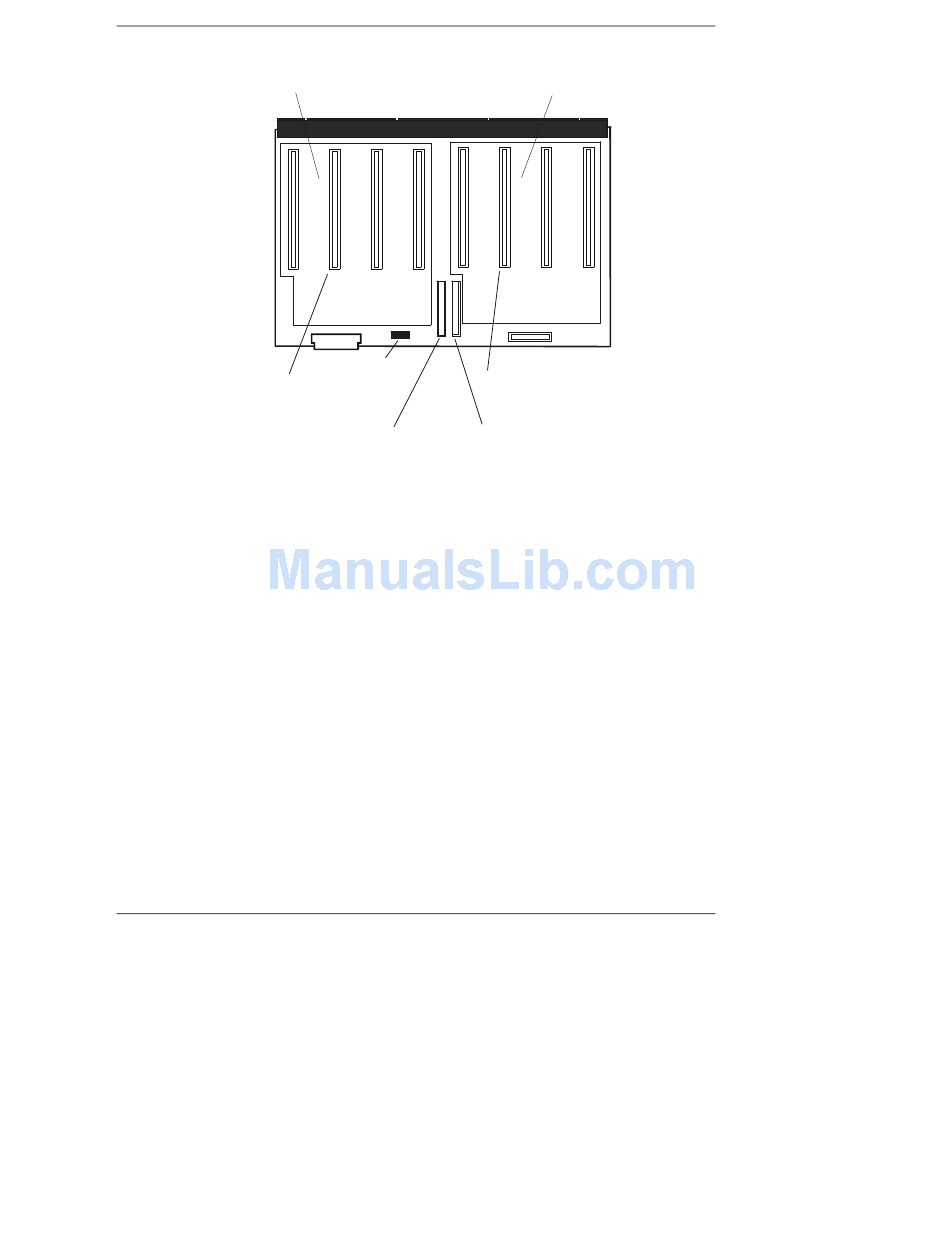

Figure 7-1. Processor Baseboard
Installing Additional Processors
2
4
3
