21. Once all DIMMs have been installed on the memory board or boards, you
are ready to re-install each one into the HP NetServer.
NOTE If the either memory slot is empty, the BIOS detects and
ignores it during the boot process.
22. To install the memory board into either memory bay slot, align the
memory board with its respective guide rails. See Figure 5-7.
Ensure the component-side (DIMMs) of the memory board faces down.
Guide
Rails

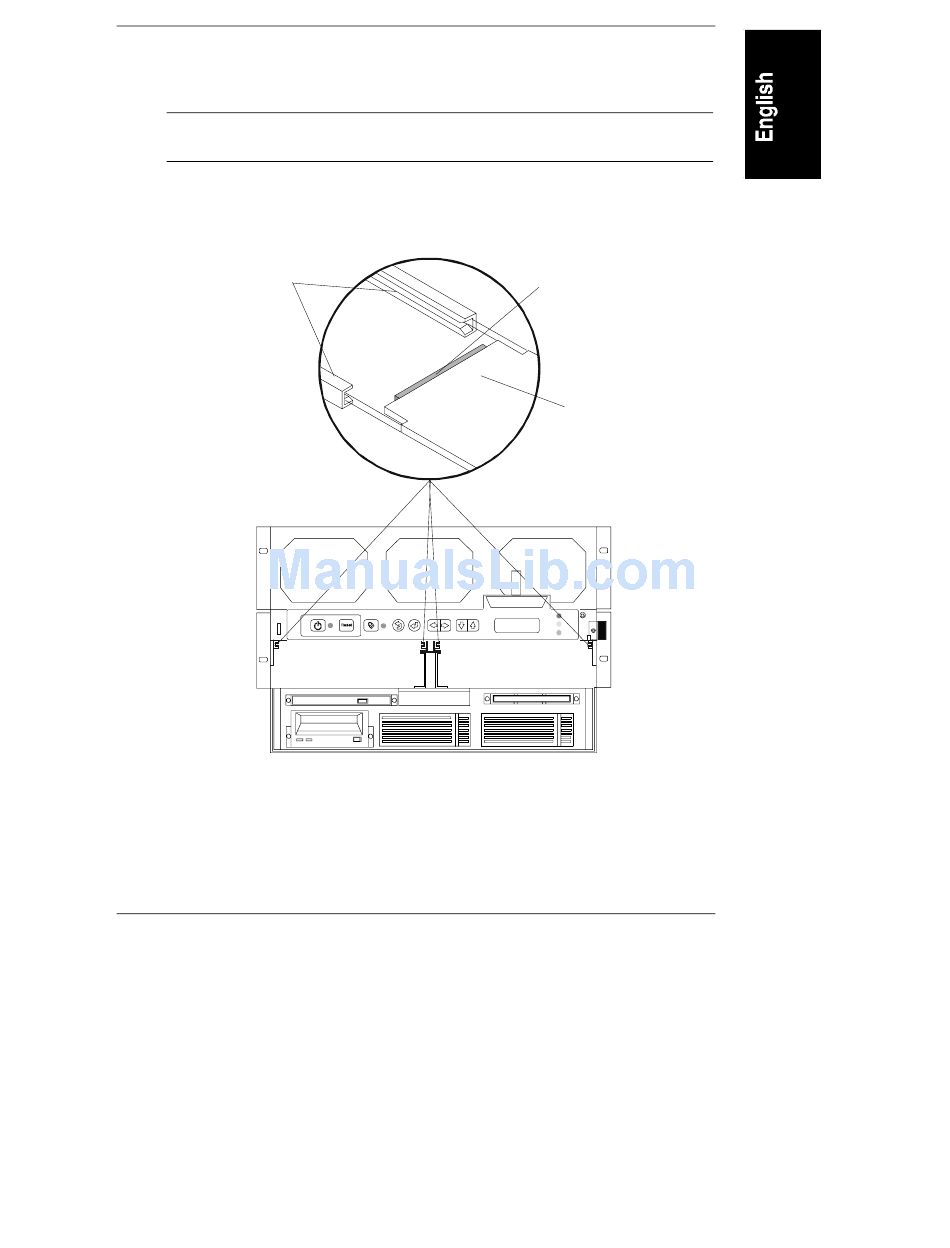

Figure 5-7. Replacing the Memory Board
23. Slide the board into the guide rails of the memory bay. See Figure 5-7.
Ensure the LCD display does not interfere with the right memory board.
24. Push the board in until it meets the slot's connector at the rear of the bay.
Installing Additional Memory
Connector
Front of HP NetServer
Memory
Board
