Chapter 4
Screws (2)
Cover
Mounting Rails (2) &
Screws (4)

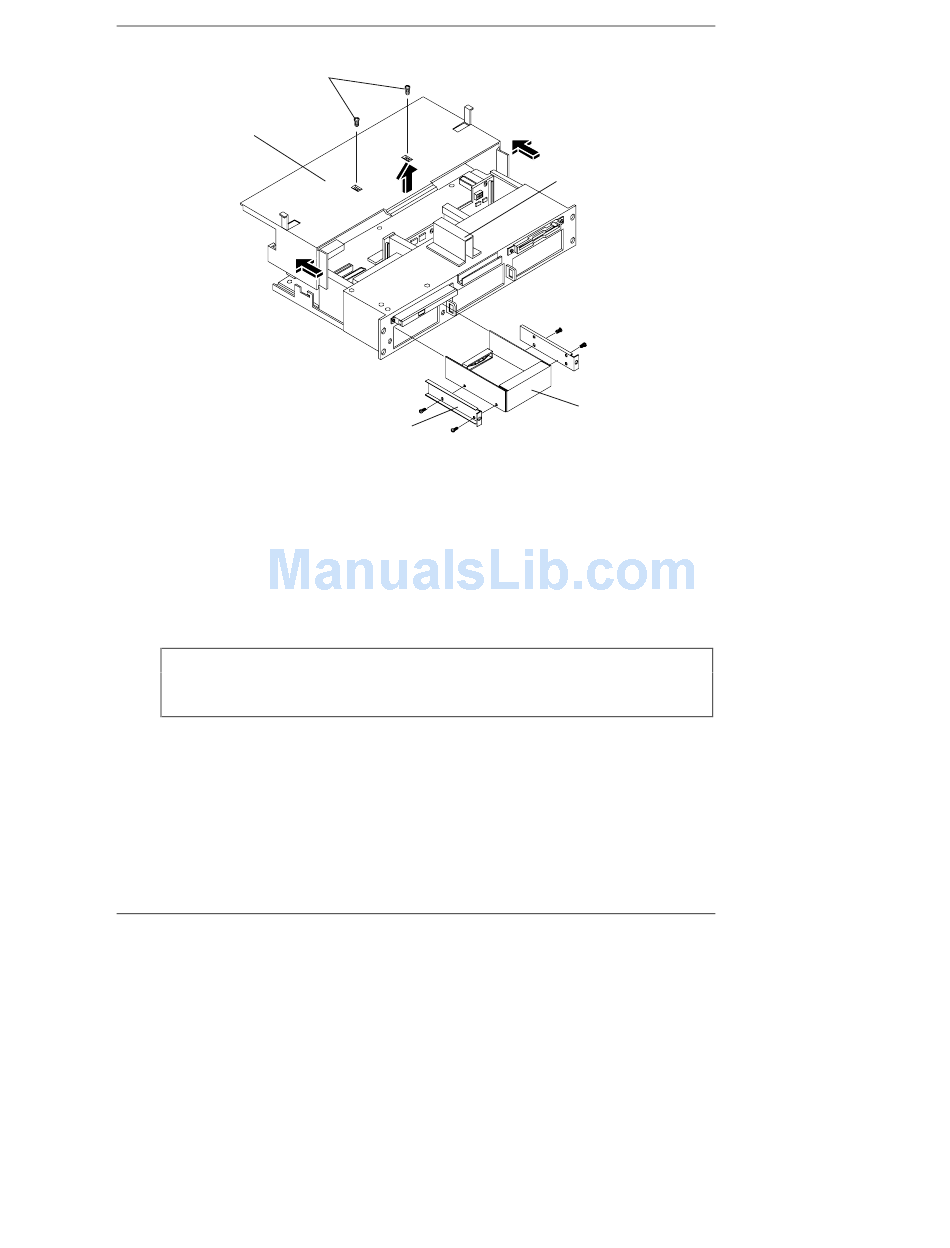

Figure 4-5. Removing the Peripheral Bay Cover
15. Connect the two mounting rails from the filler panel to the tape drive.
16. Insert the tape drive into the peripheral bay, securing it in place, and then
connect the cables (data and power) to the tape drive.
17. To install the peripheral bay and return power to the HP NetServer, reverse
Steps 1 through 10, and add Steps 18 and 19.
CAUTION
To prevent damage to the metal EMI clips and copper
grounding gasket, use caution when inserting the peripheral
bay and the memory bay cover.
18. Insert the peripheral bay slowly to ensure you engage the center post of the
peripheral bay with the memory board guide bracket.
To align the peripheral bay with its connector at the rear of the bay, the
center post and memory board guide bracket must mate together as it
moves into the bay.
46
Installing Mass Storage Devices
Post (center)
Filler
Panel
