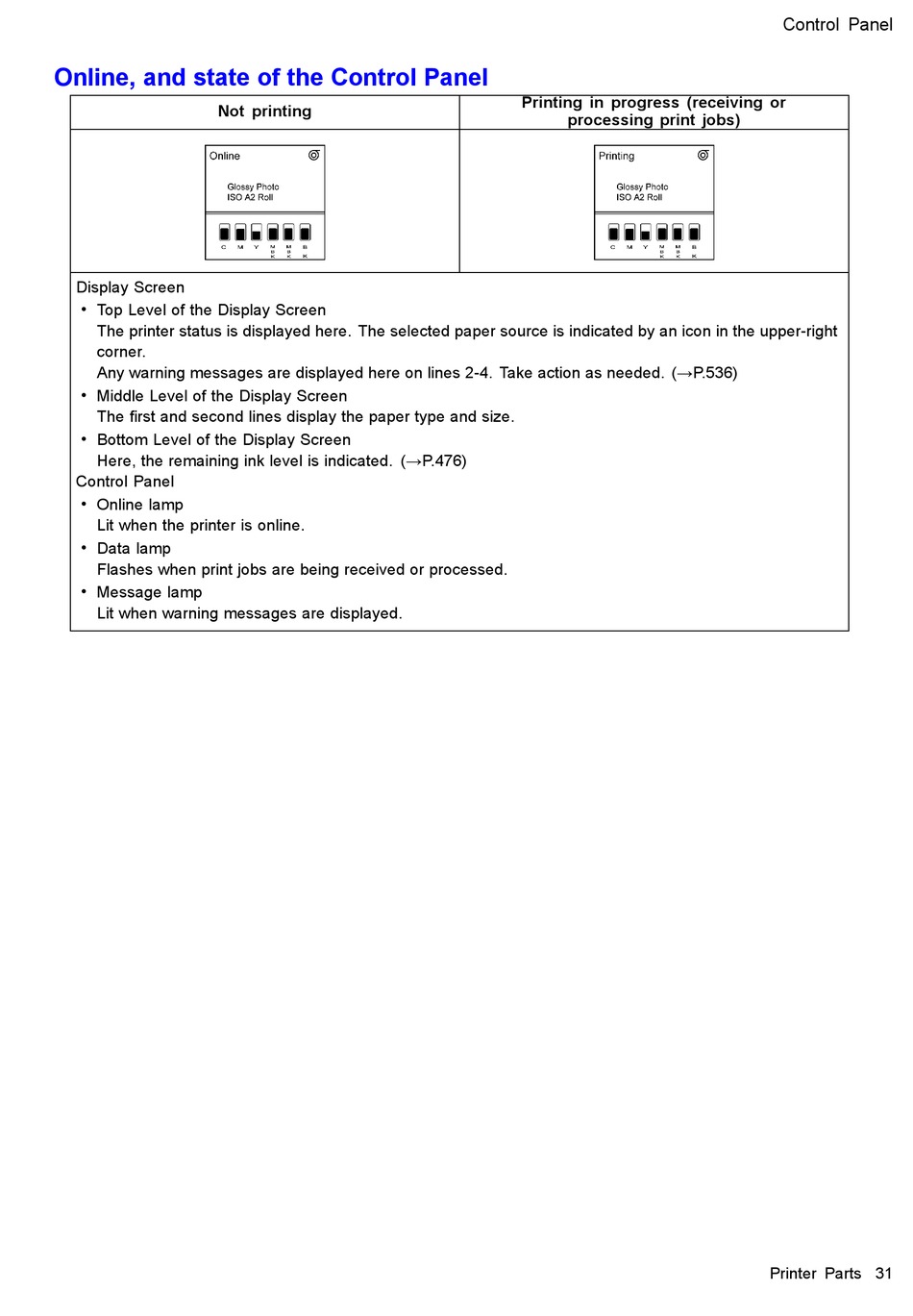

Online, and state of the Control Panel

Not printing
Display Screen
•
Top Level of the Display Screen
The printer status is displayed here. The selected paper source is indicated by an icon in the upper-right
corner.
Any warning messages are displayed here on lines 2-4. Take action as needed. (→P.536)
•
Middle Level of the Display Screen
The rst and second lines display the paper type and size.
•
Bottom Level of the Display Screen
Here, the remaining ink level is indicated. (→P.476)
Control Panel
•
Online lamp
Lit when the printer is online.
•
Data lamp
Flashes when print jobs are being received or processed.
•
Message lamp
Lit when warning messages are displayed.
Printing in progress (receiving or
processing print jobs)
Control Panel
Printer Parts 31
