Carr�Age - Canon imagePROGRAF iPF610 User Manual

Printer parts

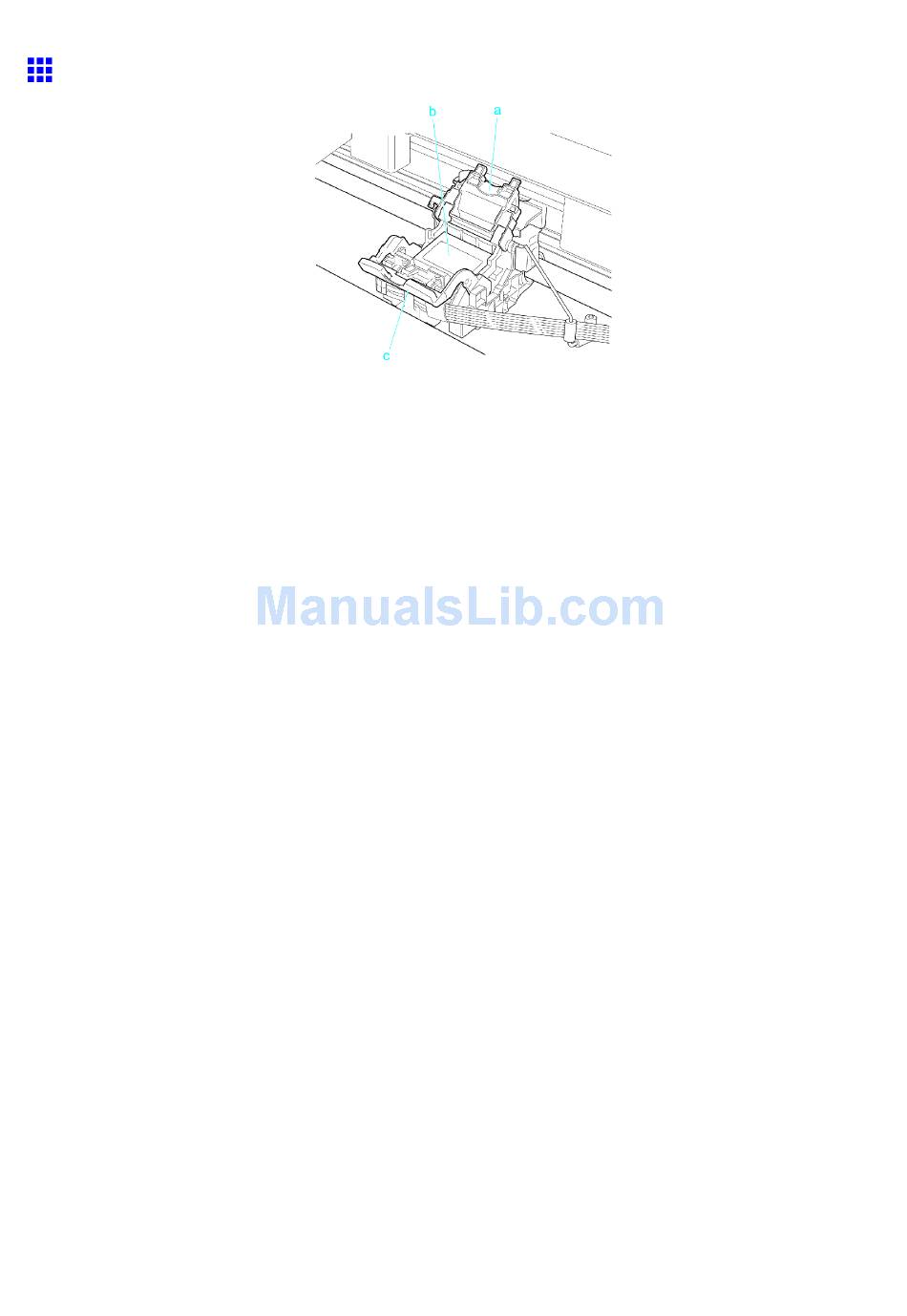

Carriage
a. Printhead Fixer Cover
Holds the Printhead in place.
b. Printhead
The printhead is equipped with ink nozzles. It serves a key role in printing.
c. Printhead Fixer Lever
Locks the Printhead Fixer Cover.
14 Printer Parts
