Labrie AUTOMIZER Helping Hand Operator's Manual page 95

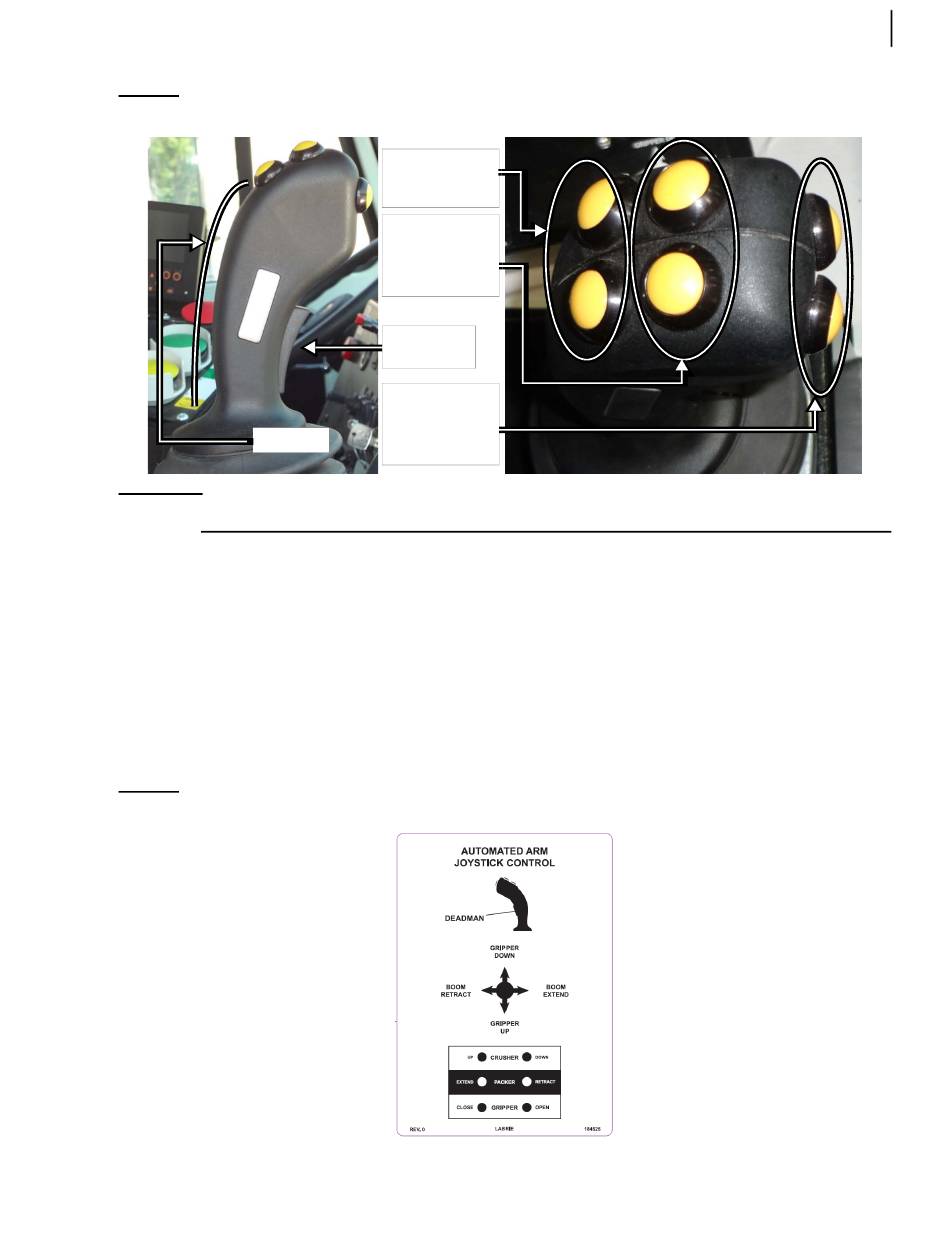

Figure 3-42 Automated arm joystick
Deadman switch must be depressed to activate in/out and up/down commands.
I :
MPORTANT
 Shift the joystick forward at 90° toward the grabber down lettering (see Figure 3-43) to lower the
grabber.
 Shift the joystick forward at 45° between the grabber down and arm extend lettering to lower the
grabber and extend the arm.
 Shift the joystick toward the streetside at 90° to the arm retract lettering to retract the arm only.
 Shift the joystick backward at 45° between the grabber up and arm retract lettering to raise the
grabber and retract the arm at the same time.
 Shift the joystick backward at 90° to the grabber up lettering to raise the grabber only
 Shift the joystick toward the curbside at 90° to the arm extend lettering to extend the arm only.
Figure 3-43 Automated arm joystick control decal
Part # 200277 (rev.00.10.2024)
Grabber
control
buttons
Crusher panel
control
buttons
(optional)
Deadman
switch
Programmable
buttons based
on chosen
Handle
options
Controls and Indicators 83
