Labrie AUTOMIZER Helping Hand Operator's Manual page 43

Crusher Panel Up Limit Switch Test
: To be carried out on all A
N
OTE
Successful completion of this test ensures that the arm operation is disabled when the crusher panel
(see Figure 1-5) is not in its stowed position.
For this test, proceed as follows:
1.
Start the truck.
2.
Engage the hydraulic pump.
3. Lower the crusher panel.
4. Try to move the automated arm with the joystick.
5. If the automated arm is still operative with the crusher panel down, the Crusher Panel Up limit
switch (see Figure 2-19) may need to be adjusted or replaced. Refer to the Limit and Proximity
Switches section in the Maintenance Manual for proper procedure.

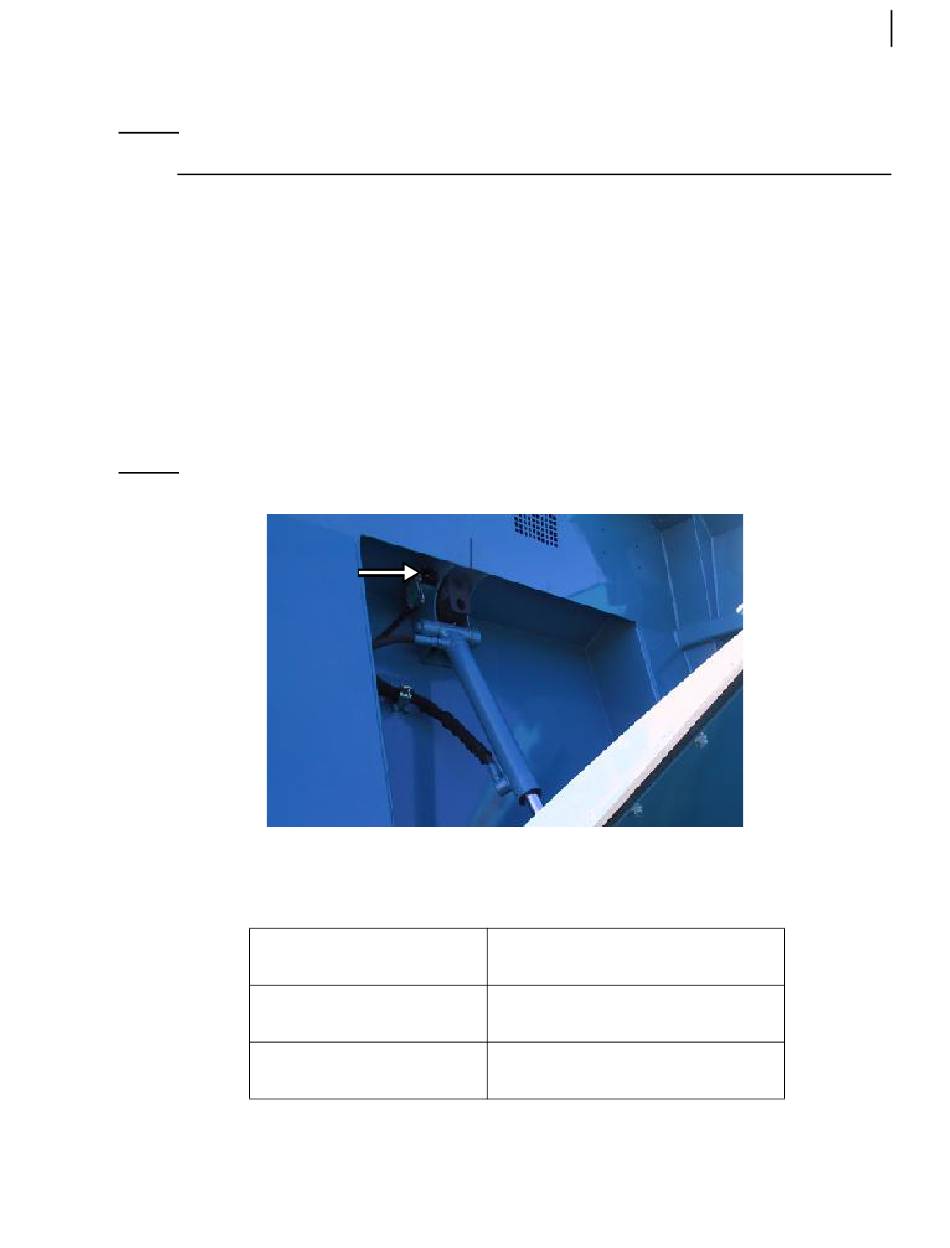

Figure 2-19 Crusher panel up limit switch
Quick Reference Lockout Chart
Tailgate unlocked (full-eject
vehicles only)
Tailgate fully open (full-eject
vehicles only)
Crusher panel not in "home"
position (if equipped)
Part # 200277 (rev.00.10.2024)
vehicles equipped with the optional crusher panel.
UTOMIZER
Pack/autopack functions inoperative
Pack/autopack functions inoperative
Full-eject mode operative
Arm controls disabled
Safety 31
