 press "OFF" to deactivate the corresponding function (rectangle turns from green to blue)
 press "RESET" to have the software control the status of the corresponding function
N : To cancel changes made in this page and restore the default values, all you have to do is cut
OTE
power to the multiplex system by turning the ignition key off.
N : To go from one module to another (e.g. from module 10 to 50), the operator has to go back to
OTE
the Module I/O Status page (see Figure 3-8) and select module 50.
Press "Esc" to return to the preceding page.
Joystick
The Joystick page is accessible from the Module I/O Status page (see Figure 3-8). From that page
select "Joystick" using the up/down arrows and press "OK". The Joystick page opens up (see Figure
3-15).

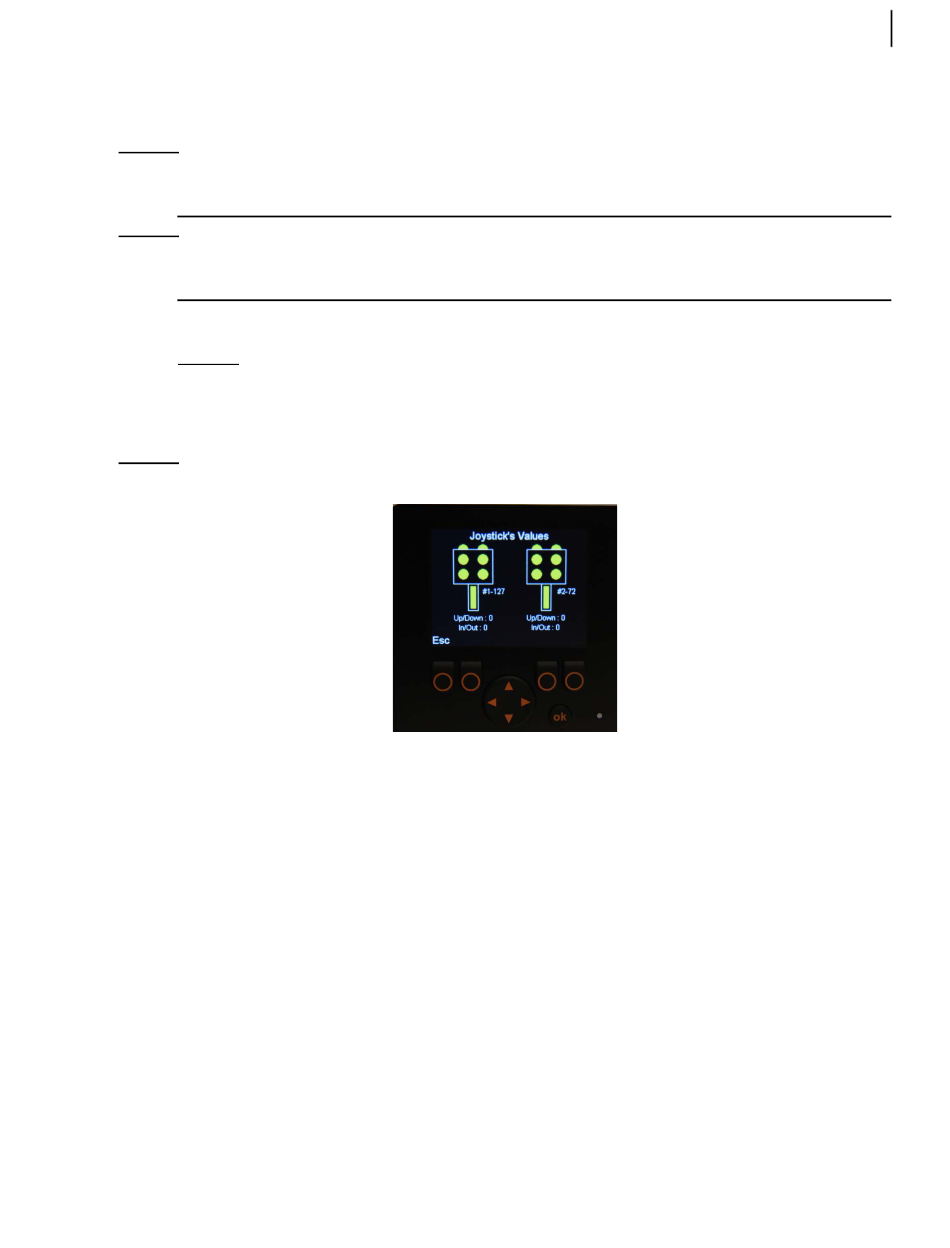

Figure 3-15 Joystick page
The Joystick page allows the operator to check if all functions of the joystick are working correctly. If
one joystick is installed on your vehicle, it will be represented on the monitor screen by joystick 127.
However, if two joysticks are installed on your vehicle, any of the two joystick numbers (127 and 72)
can represent either joystick on the screen.
If you press a joystick button, the corresponding button on the monitor will turn green. If nothing
happens, there may be a communication problem between the joystick and the master control
module. Refer to the maintenance personnel or LabriePlus.
Also, if you move the joystick backwards, forwards or sideways, you should see the values under the
illustration changing. If no change occurs when moving the joystick, a communication problem
between the joystick and the master control module may be the cause. Refer to the maintenance
personnel or LabriePlus.
Press "Esc" to return to the preceding page.
