42 Controls and Indicators

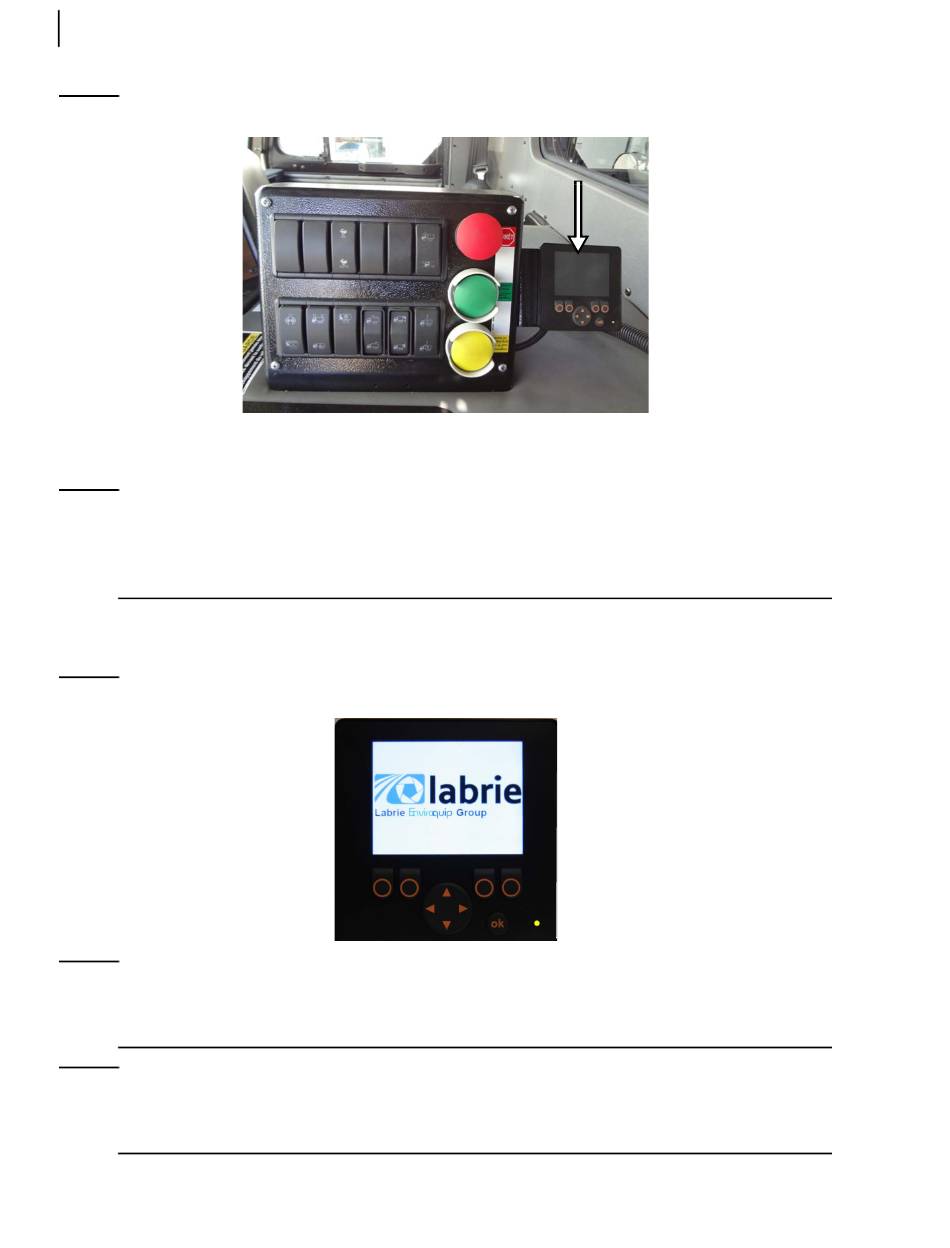

Figure 3-1 Monitor
Each time the operator turns the ignition key on, a complete bit test of the multiplex system is
conducted. This test takes about 5 seconds to complete.
N : A flashing green light on the monitor indicates that the power is on. This light should be
OTE
blinking steadily at 2 Hz during normal operation. If it blinks at a faster rate, it is a sign of a
problem with the monitor. A flashing red light on the monitor is also a sign of a problem. Call
LabriePlus for support.
The logo of Labrie appears momentarily on the monitor screen at the start of the system (see Figure
3-2).
Figure 3-2 Labrie logo on monitor screen
N : If the Welcome Screen with the Labrie logo stays on continuously, there may be a
OTE
communication problem between the monitor and the master control module. Report this
problem to the maintenance personnel.
N : The monitor screen works even if the engine is not started. All it needs is electrical power.
OTE
However, if you start the engine, the monitor will reboot to reflect the changes caused by the
starting of the truck.
