Product Overview
The body of the A
1-4), the packer (see Figure 1-3), and the tailgate (see Figure 1-3).
It may also be equipped with the optional crusher panel (see Figure 1-5).
The hopper is the area of the body where refuse is dumped. The packer is the piece of equipment that
pushes refuse into the body. On full-eject vehicles, the packer is also used to eject refuse out of the
body at landfill. The crusher panel is used to crush bulky items and can be used concomitantly with
the packer blade for a more powerful crushing effect. The tailgate is the rear pivotal door that prevents
refuse from exiting the body during collection. At landfill, the tailgate is raised to enable the discharge
of refuse.

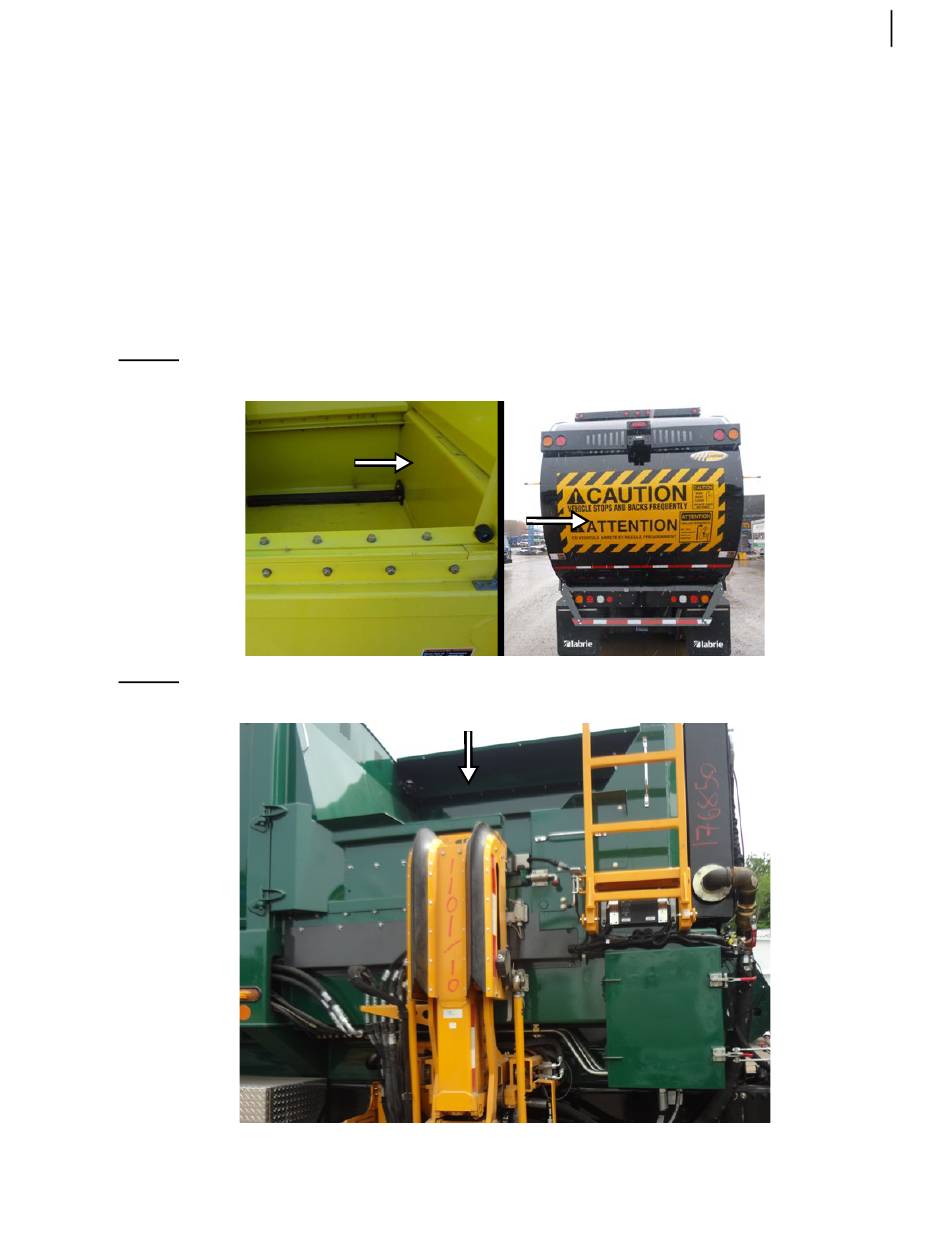

Figure 1-3 Packer panel (left); tailgate (right)
Figure 1-4 Hopper
Part # 200277 (rev.00.10.2024)
is composed of the following main components: the hopper (see Figure
