66 Controls and Indicators
To test the new packer settings:
1.
On the control panel press the
(see Figure 3-23).
2. Once the packer has completed its cycles and come to a stop, switch off the hydraulic pump and
turn OFF the engine.
The number of cycles needs to be adjusted depending on the type of collection route used by the
vehicle. For example, in a residential area, if the houses are numerous and close to one another, it may
be required to select the higher number of cycles. This will allow the hopper to be clear for the next
house pickup.
Each time the packer completes a full cycle, the packer limit/proximity switch sends a signal to the
electronic module. The module then counts the amount of cycles that the packer does, and will stop
the packer after the preset amount of cycles has been reached.
I/O Status Page
In this section, you will find helpful information to troubleshoot body-related problems that you may
face during your day-to-day tasks. These problems can be of any nature, from hydraulic to
mechanical, electrical or pneumatic.
To access the I/O Status Page, tap the monitor screen and choose Shortcut Button # 4
"Troubleshooting and Controller Inputs/Outputs" in the Quick Access Toolbar (see Figure 3-20),
then select the control module corresponding to the part of the truck that needs to be checked. For
example, if you want to check all functions that are found in the cab, choose the Cabine I/O module.
For all functions that pertain to the right hopper, choose the Body module, etc.
N : To go back to the Main Page, select Shortcut Button #2 "Home" in the Quick Access Toolbar.
OTE

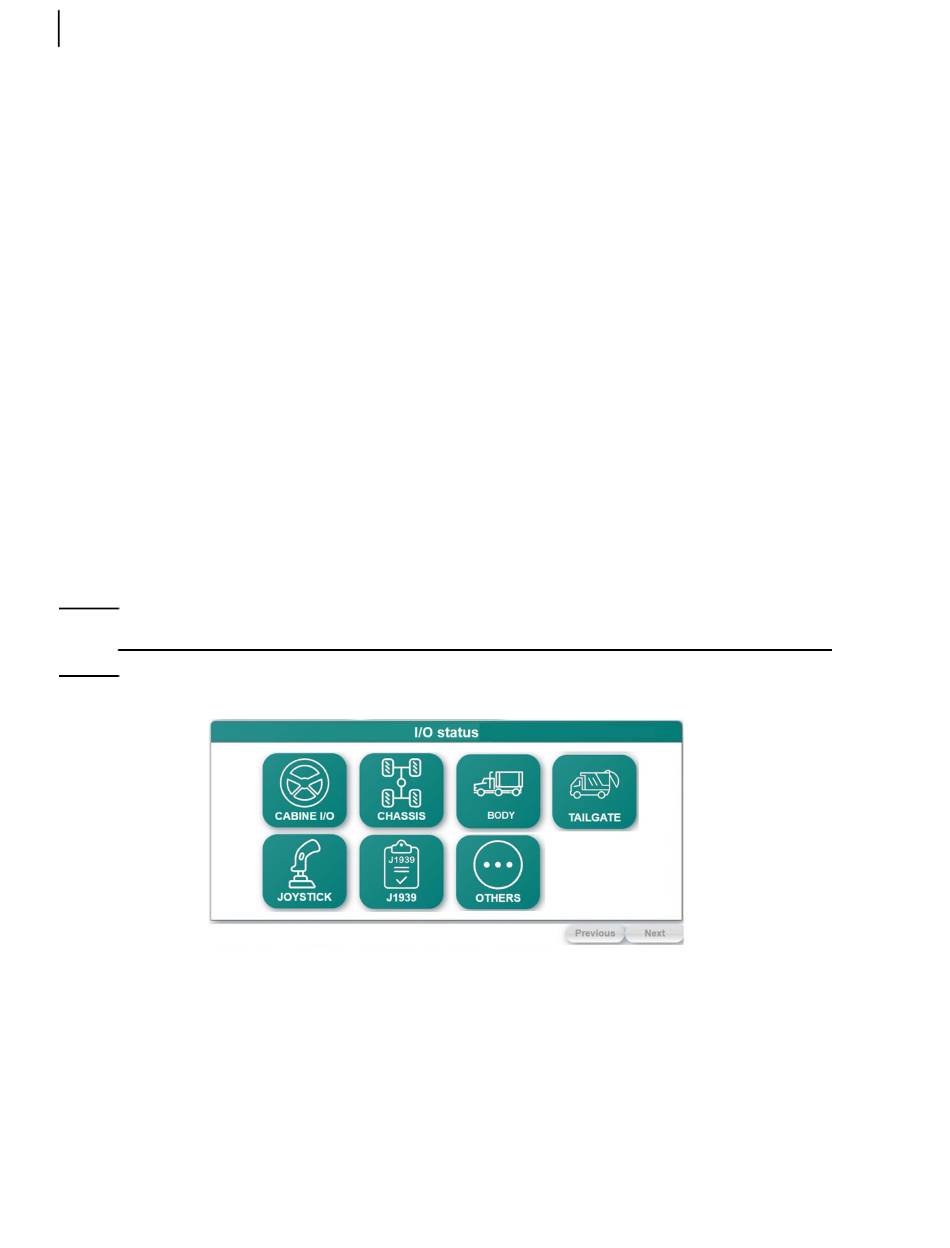

Figure 3-24 I/O Status Page
Part # 200277 (rev.00.10.2024)
switch and the green
MULTICYCLE
button
START CYCLE
