62 Controls and Indicators

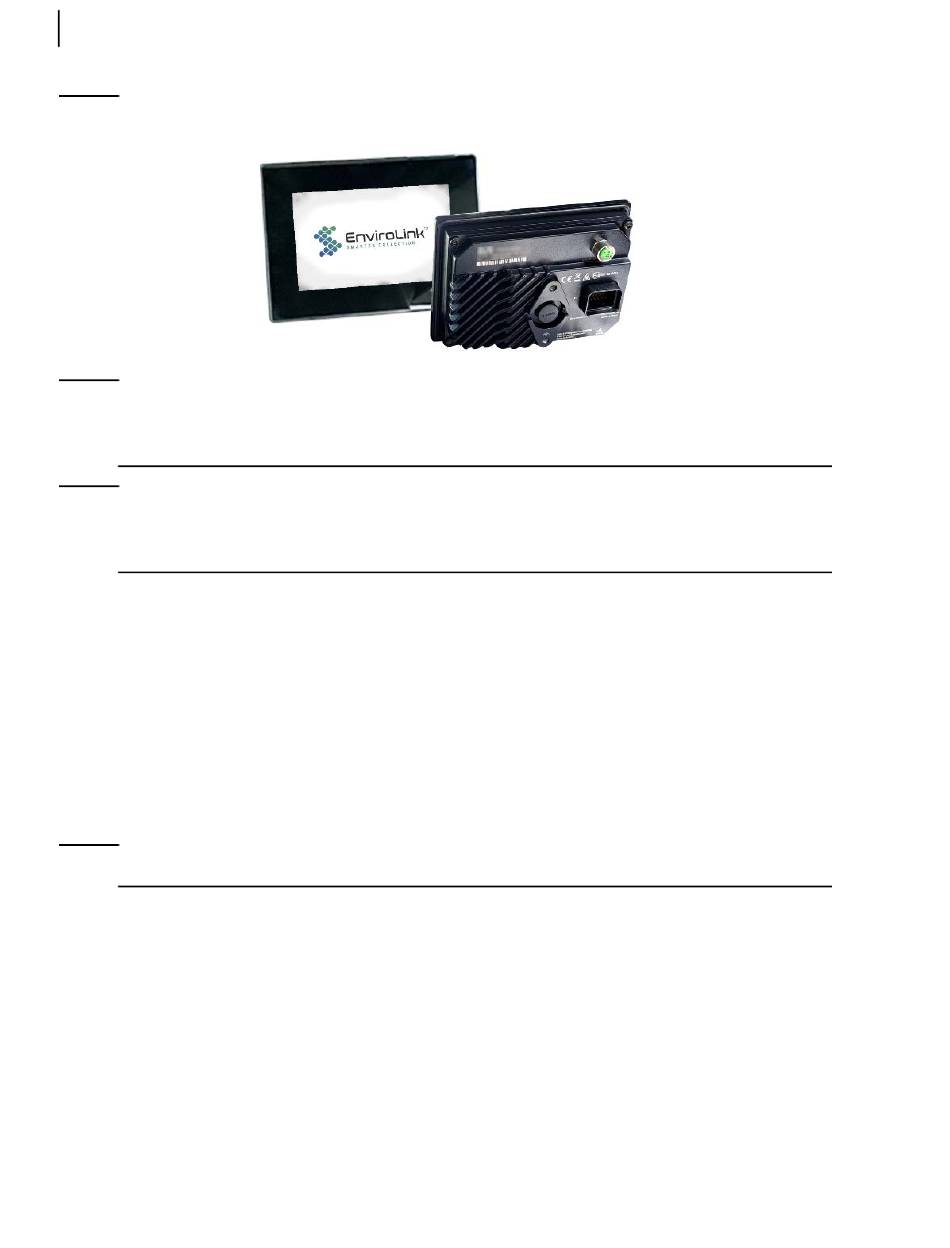

Figure 3-19 E
NVIROLINK
N : If the Welcome Screen with the E
OTE
communication problem between the monitor and the master control module. Report this
problem to the maintenance personnel.
N : The monitor screen works even if the engine is not started. All it needs is electrical power.
OTE
However, if you start the engine, the monitor will reboot to reflect the changes caused by the
starting of the truck.
Main Page
The next page that comes up after the Welcome Screen is the Main Page (see Figure 3-20). Here you
will find the Quick Access Toolbar for links to the sub-menus. This 7-button toolbar is located in the
lower portion of the screen. The Main Page also shows any warnings and errors that may occur
during the operation of the unit. The Main Page may also have the following optional indicators:
Time and Date Indicator, Hydraulic Oil Temperature Indicator and Cart Counter.
Quick Access Toolbar
The Quick Access Toolbar is a collection of 7 shortcuts that lead to specific sub-menus or commands.
The following is a short description of those 7 shortcuts:
N : Item numbers refer to Figure 3-20.
OTE
Shortcut Button #1: Use this button to erase any error messages or acknowledge warning messages.
Shortcut Button #2: Use this button to go back to the Main Page.
Shortcut Button #3: This button takes you to any automated features provided and their related
settings. An example of an automated feature on your truck is the Multicycle.
Shortcut Button #4: This button is used when troubleshooting any technical issues with the truck. It
gives you a visual representation of all controller inputs and outputs.
Shortcut Button #5: Use this button if you want to get access to various information about the waste
body, including program versions.
