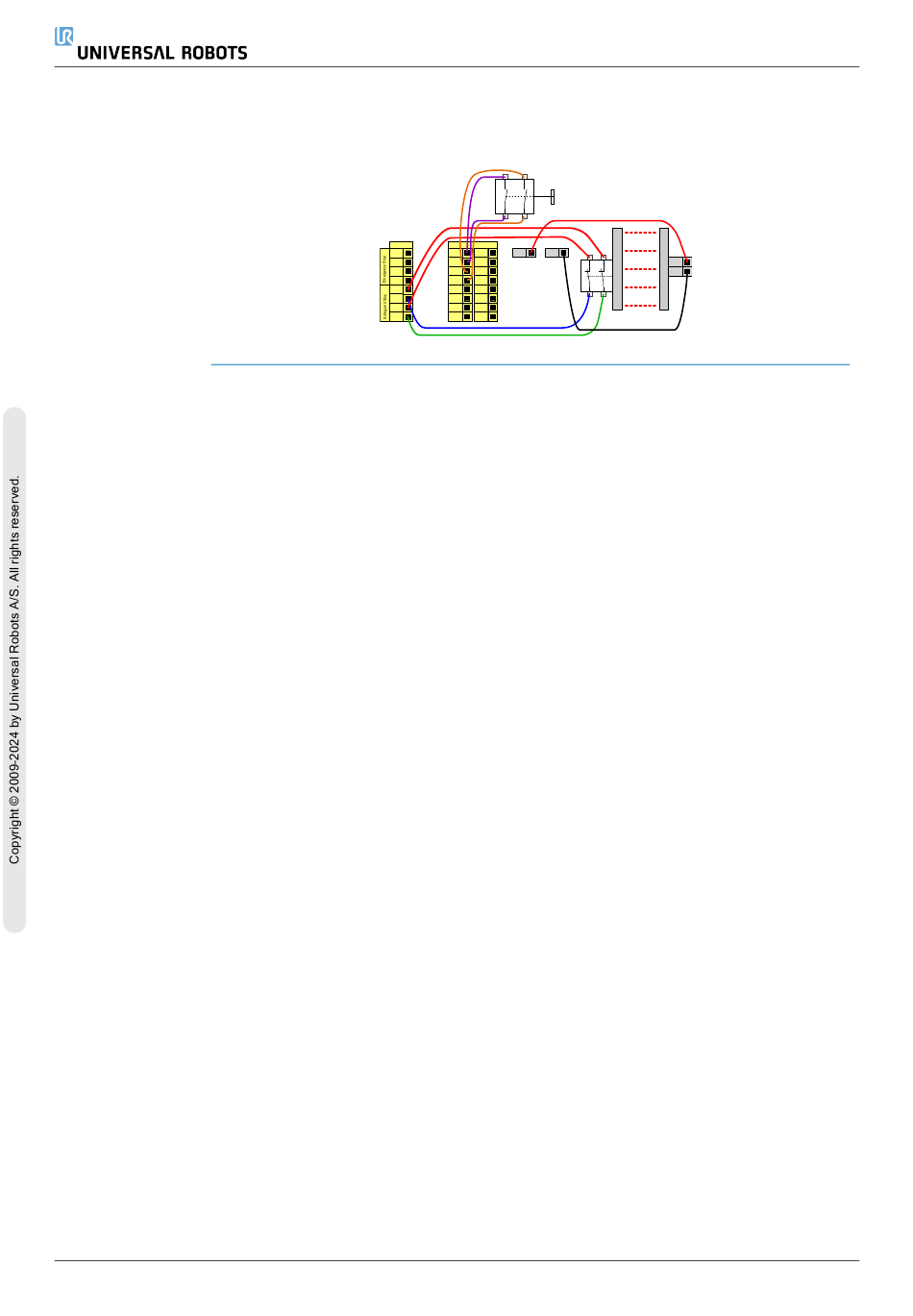

Safeguard Stop If the safeguard interface is used to interact with a light curtain, a reset outside the
with reset button safety perimeter is required. The reset button must be a two channel type. In this
example the I/O configured for reset is CI0-CI1.
`final
UR10e PolyScope X
Safety Configurable7Inputs
24V 24V 24V 0V
24V
EI0 CI0 CI4
24V 24V
24V
EI1 CI1 CI5
24V 24V 24V
SI0 CI2 CI6
24V 24V 24V
SI1 CI3 CI7
