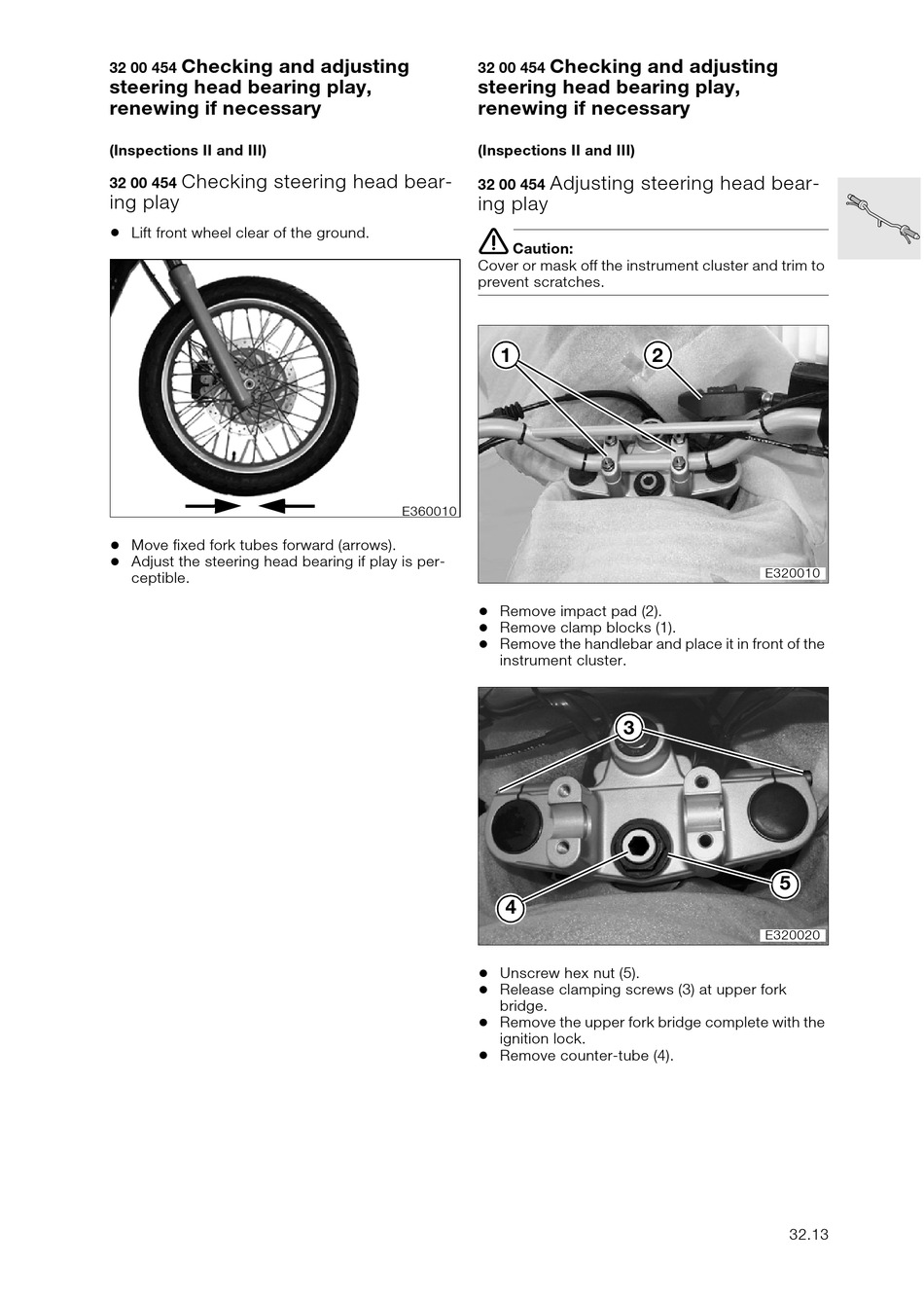

BMW F 650 GS Repair Manual page 211

Checking and adjusting
32 00 454
steering head bearing play,
renewing if necessary
(Inspections II and III)
Checking steering head bear-
32 00 454
ing play
•
Lift front wheel clear of the ground.
•
Move fixed fork tubes forward (arrows).
•
Adjust the steering head bearing if play is per-
ceptible.
Checking and adjusting
32 00 454
steering head bearing play,
renewing if necessary
(Inspections II and III)
Adjusting steering head bear-
32 00 454
ing play
e
Caution:
Cover or mask off the instrument cluster and trim to
prevent scratches.
1
E360010
•
Remove impact pad (2).
•
Remove clamp blocks (1).
•
Remove the handlebar and place it in front of the
instrument cluster.
4
•
Unscrew hex nut (5).
•
Release clamping screws (3) at upper fork
bridge.
•
Remove the upper fork bridge complete with the
ignition lock.
•
Remove counter-tube (4).
2
E320010
3
5
E320020
32.13
