BMW F 650 GS Repair Manual page 145

1
2
8
•

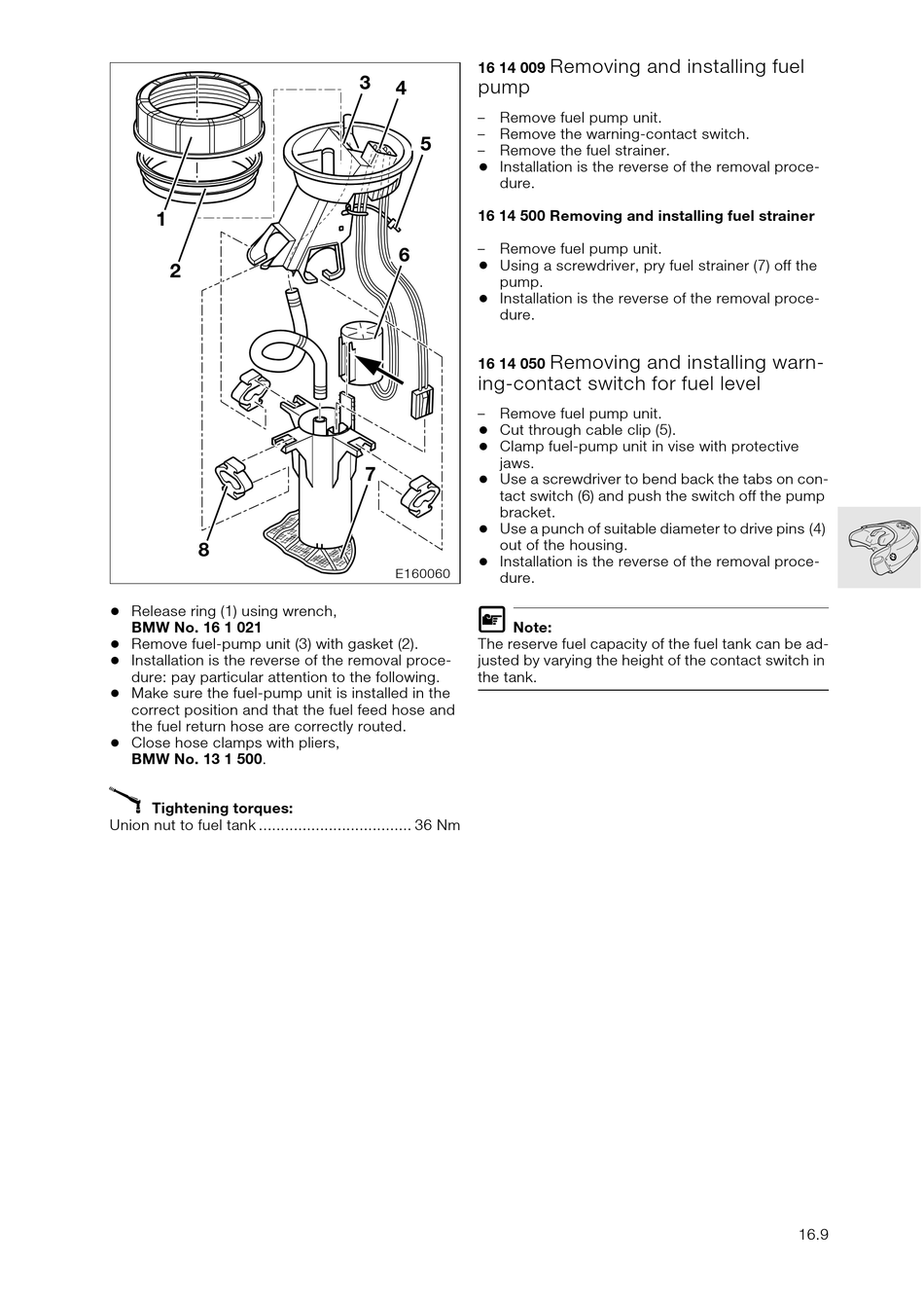

Release ring (1) using wrench,
BMW No. 16 1 021
•
Remove fuel-pump unit (3) with gasket (2).
•
Installation is the reverse of the removal proce-
dure: pay particular attention to the following.
•
Make sure the fuel-pump unit is installed in the
correct position and that the fuel feed hose and
the fuel return hose are correctly routed.
•
Close hose clamps with pliers,
BMW No. 13 1 500.
X
Tightening torques:
Union nut to fuel tank ................................... 36 Nm
16 14 009
3
pump
4
– Remove fuel pump unit.
– Remove the warning-contact switch.
5
– Remove the fuel strainer.
•
Installation is the reverse of the removal proce-
dure.
16 14 500 Removing and installing fuel strainer
– Remove fuel pump unit.
6
•
Using a screwdriver, pry fuel strainer (7) off the
pump.
•
Installation is the reverse of the removal proce-
dure.
16 14 050
ing-contact switch for fuel level
– Remove fuel pump unit.
•
Cut through cable clip (5).
•
Clamp fuel-pump unit in vise with protective
jaws.
7
•
Use a screwdriver to bend back the tabs on con-
tact switch (6) and push the switch off the pump
bracket.
•
Use a punch of suitable diameter to drive pins (4)
out of the housing.
•
Installation is the reverse of the removal proce-
E160060
dure.
L
Note:
The reserve fuel capacity of the fuel tank can be ad-
justed by varying the height of the contact switch in
the tank.
Removing and installing fuel
Removing and installing warn-
16.9
