BMW F 650 GS Repair Manual page 142

•

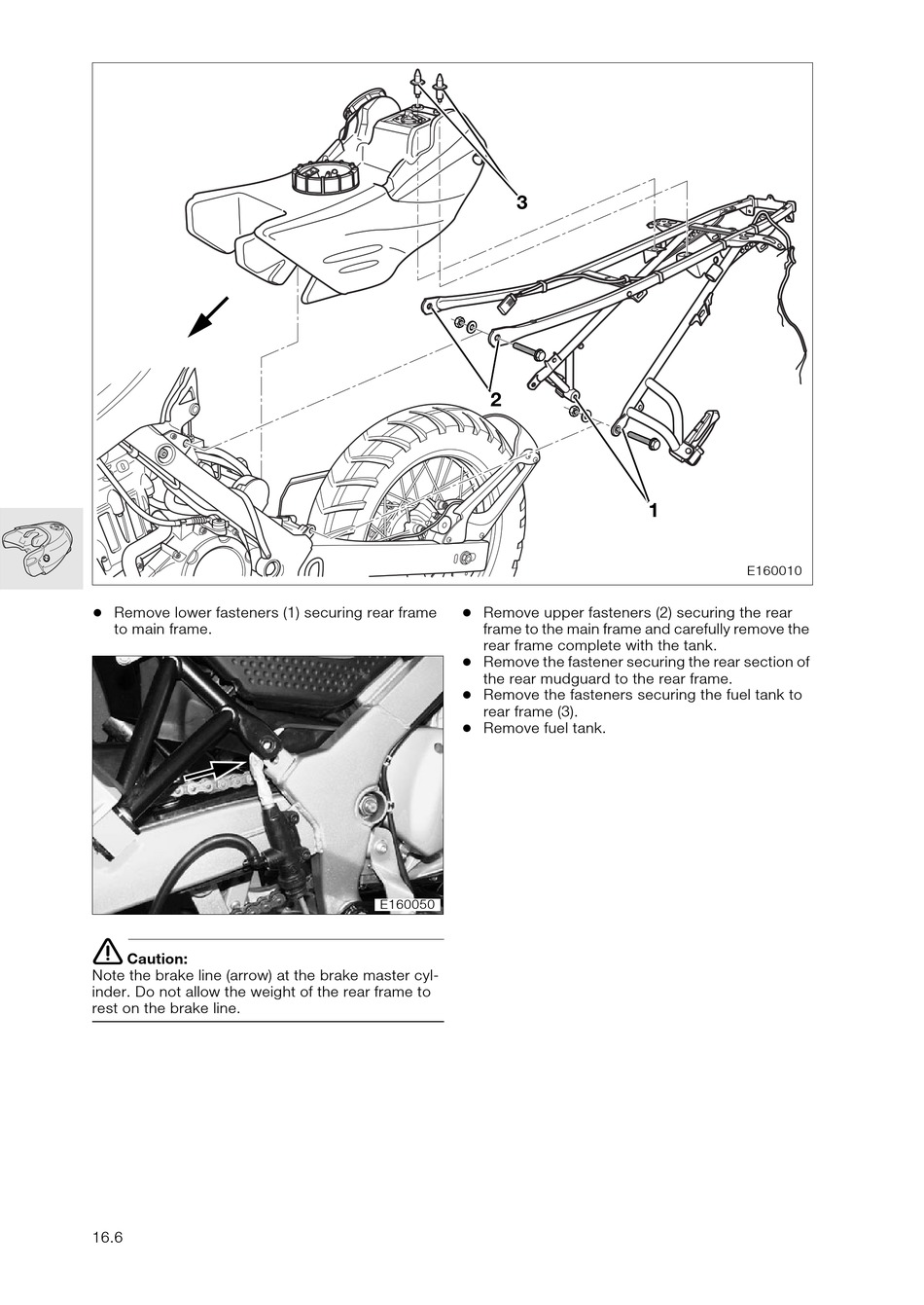

Remove lower fasteners (1) securing rear frame
to main frame.
e
Caution:
Note the brake line (arrow) at the brake master cyl-
inder. Do not allow the weight of the rear frame to
rest on the brake line.
16.6
3
2
•
Remove upper fasteners (2) securing the rear
frame to the main frame and carefully remove the
rear frame complete with the tank.
•
Remove the fastener securing the rear section of
the rear mudguard to the rear frame.
•
Remove the fasteners securing the fuel tank to
rear frame (3).
•
Remove fuel tank.
E160050
1
E160010
