5.

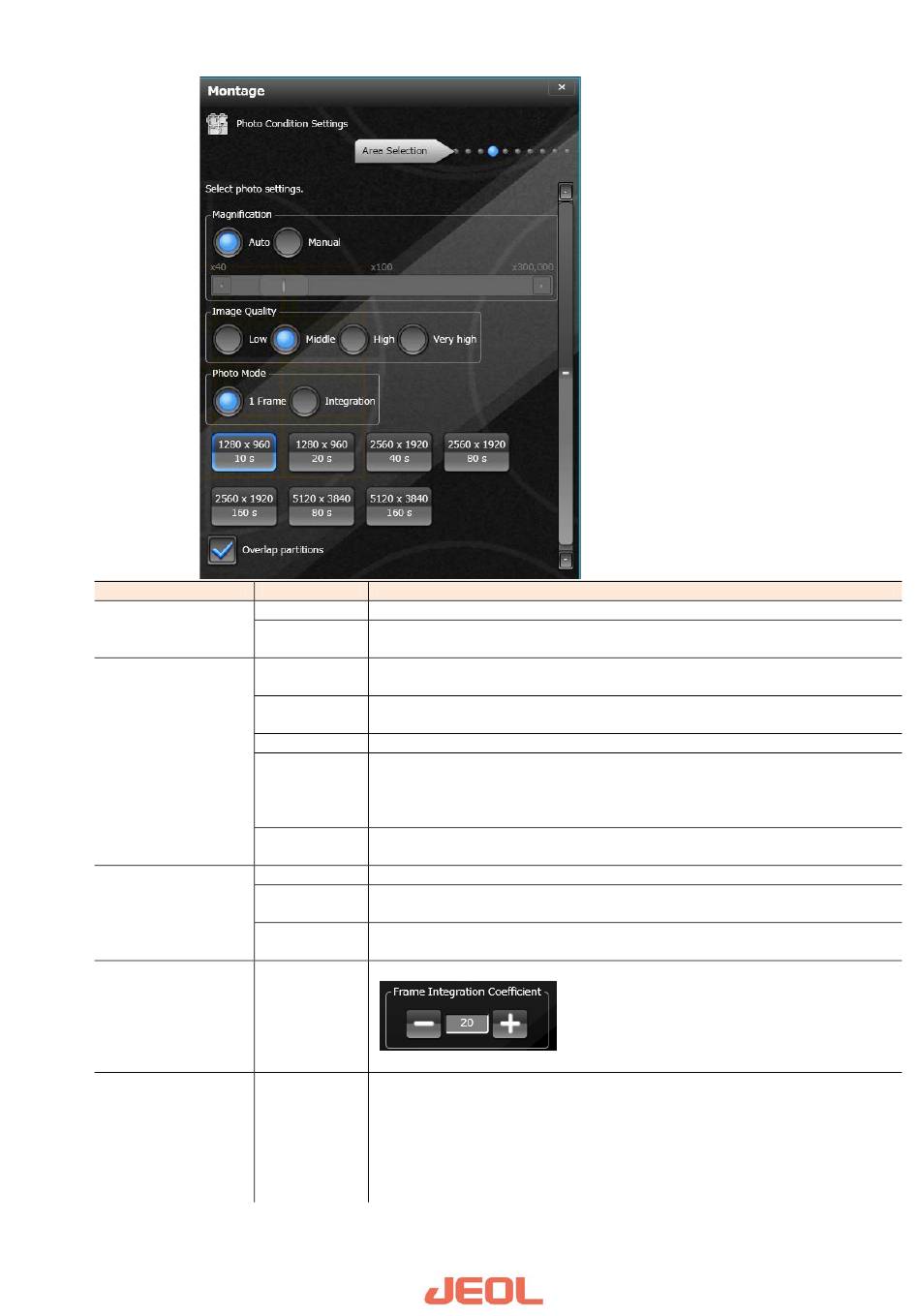

Set the montage conditions.
Name
Magnification
Image Quality
Photo Mode
Frame Integration
Coefficient
(Only when the
"Integration" is
selected in Photo
mode)
Overlap partitions
No.ISMIT200-1E
Description
Auto Sets magnification automatically during imaging.
Manual Sets magnification manually during imaging.
Use the slide bar to set magnification.
For automatic magnification, the number of photographed images is set
to four stages.
Low Image acquisition takes faster for the smaller number of photographed
images.
Middle This is the default setting.
High Increases the number of images being photographed, and smooth the
montage images.
Image acquisition takes longer due to the number of photographed
images being increased.
Very high Increases the number of photographed images more than "High" to
smooth the montage image. Image acquisition takes longer than "High"
Select the scan type for image acquisition.
1 frame Photographs an image by using Photo Scan.
Image acquisition time can be selected below.
Integration Photographs an image by using Integration Scan.
Image acquisition time can be selected below.
Sets the integration count. （1～2048）
Sets whether the viewing field is overlapped or not.
Selecting this check box enables you to specify the range of overlap of
the viewing field for imaging, and increases the performance of
automatic coupling.
The overlapped areas are indicated by the green dotted lines in the field
of view.
