JEOL JSM-IT200 Instructions Manual page 98

4.5.2 Snap Shot

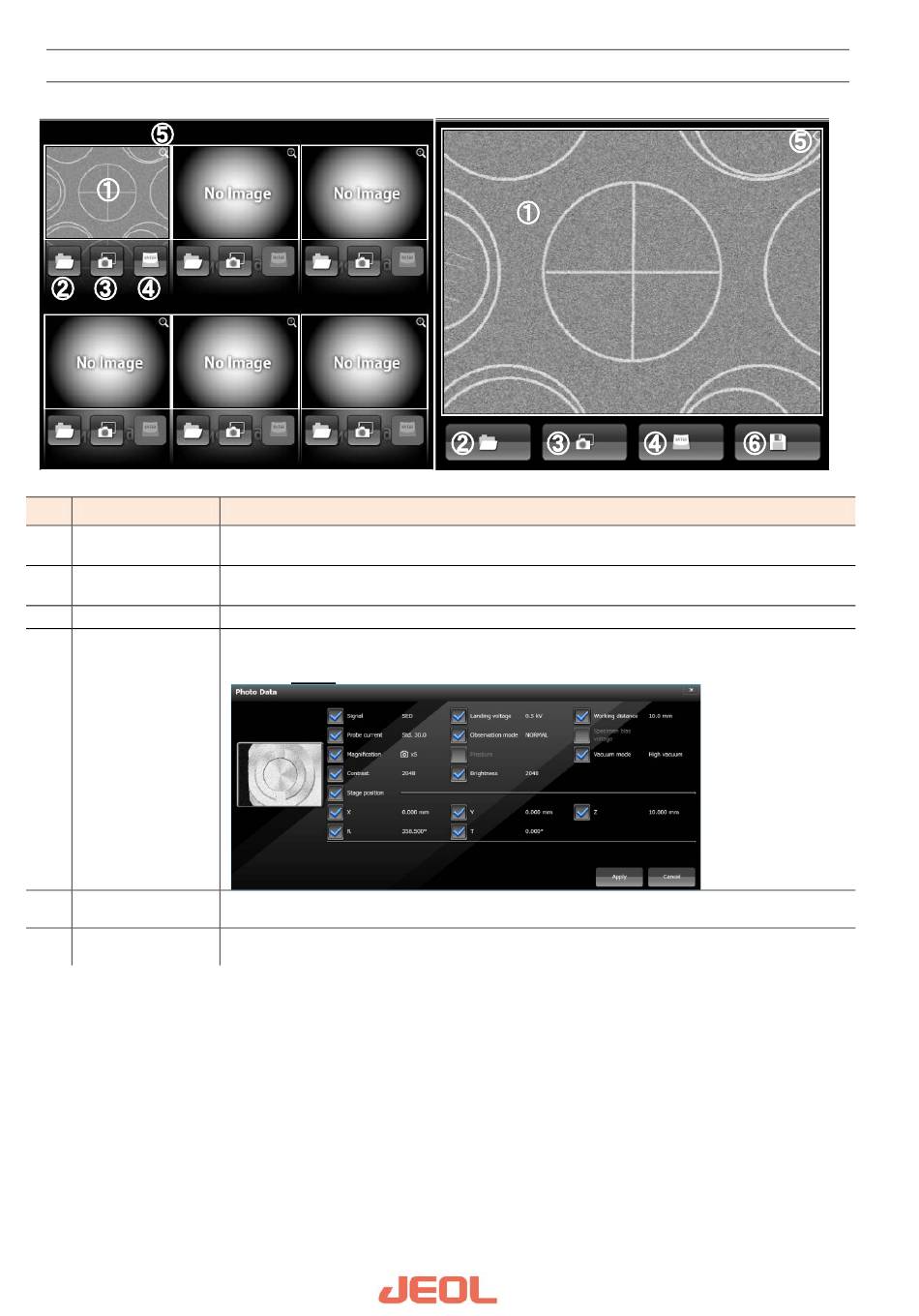

Six screen mode
Name
Image save area
1
2 Icon for opening a
file
Snap icon
3
Condition
4
reproduction icon
Screen mode
5
switching button
Icon for saving a
6
4-28
Click the snap icon ③ with the live or freeze image being displayed enables pasting of
the image in this area.
Click this icon enables calling-up of an image stored in the predetermined folder and
pasting thereof in the image paste area ①.
Icon for pasting an image in the area ①.
For reproducing the conditions when an image was pasted, click this icon to display the
photo data window, check the conditions desired to reproduce in said window, and then
click the Apply button.
Enables switching from six screen mode to single screen mode.
Click this icon enables storing a snap image into the arbitrary location. An area frame is
also stored at the same time.
Single screen mode
Description
No.ISMIT200-1E
