JEOL JSM-IT200 Instructions Manual page 169

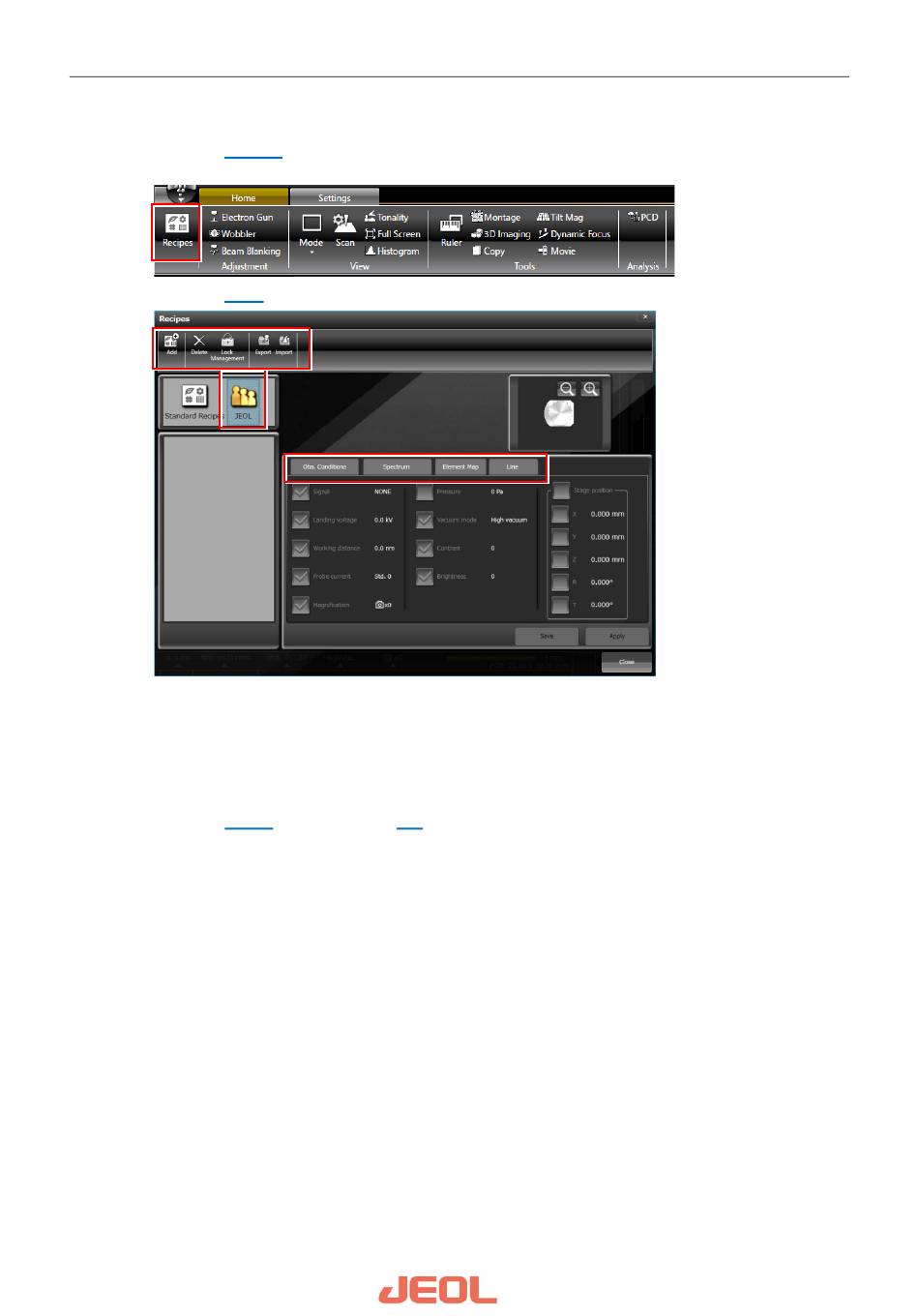

5.9.12.b Observing at the registered observation condition
About other operation such as registration of the observation condition, please see next page.
1.
Click the Recipe icon in the Home tab.
The recipe window is displayed.
2.
Click the User icon.
JSM-IT200/LV：
JSM-IT200A/LA：
3.
Select recipe from the thumbnail display.
4.
Tick the observation condition checkbox which you want to apply
Remove the check mark which does noClickply.
5.
Click the Apply button and the OK button.
The observation condition is applied.
5-40
Obs. Conditions tab
Obs. Conditions tab, Spectrum tab, Element Map tab, Line tab
No.ISMIT200-1E
