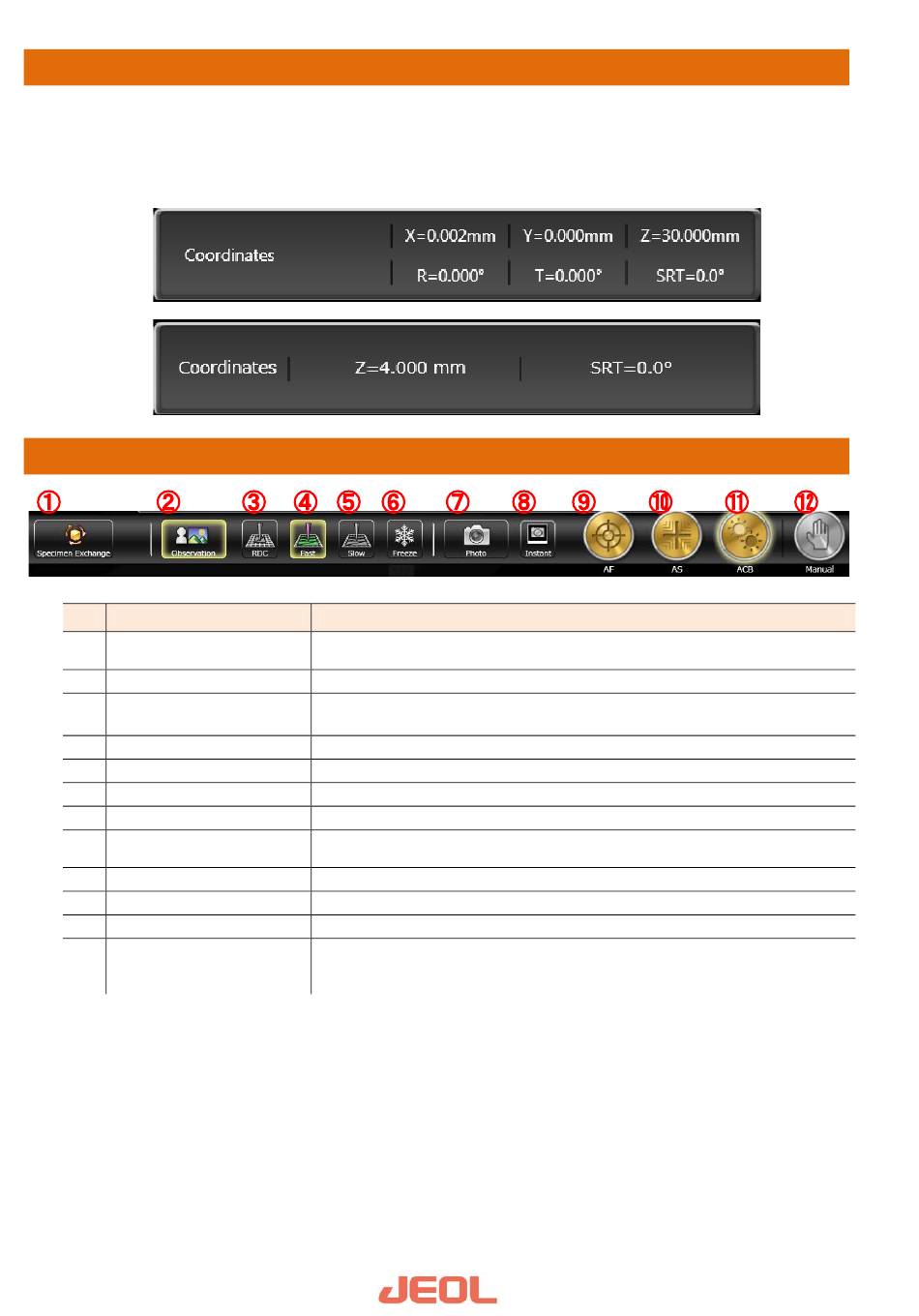

4.8 COORDINATES DISPLAY
The current coordinates is displayed, click one of each items, the stage can be moved by the coordinates
specification. Click SRT, the manual adjustment tool is displayed and an image can be rotated.
The display of coordinates will change depending on the mounted motor drive shaft.
4.9 FIXED ICON
Name
Specimen Exchange /
1
Recipes
2
Observation icon
3
RDC icon
4
Fast icon
5
Slow icon
6
Freeze icon
7
Photo icon
8
Instant icon
9
AF icon
10
AS icon
11
ACB icon
12
Manual icon
4-30
When the MS5 (option) is installed
When the LGS (option) is installed
Display the specimen exchange navigation screen.
Used when observing an image.
Limits the electron beam scan range. ＊Screen resolution （320×240
pixels）
Displays a live image at high speed.
Displays a live image at slow speed.
Makes a live image to a static image.
Starts imaging.
Starts imaging of F.O.V which is being observed.
Photo speed is depending on the scan speed which is being observed.
Automatically adjusts the focus of an image.
Automatically corrects the astigmatism of an image.
Automatically adjusts the brightness of an image.
Used for manually adjusting the observation conditions.
Click this icon displays the manual adjustment tool shown on the next
page.
Description
