UG-180
DATA PREPROCESSOR AND COLOR SPACE CONVERSION AND COLOR CONTROLS
COLOR SPACE CONVERSION MATRIX
The ADV7611 provides any-to-any color space support. It supports formats such as RGB, YUV, YCbCr and many other color spaces.
The ADV7611 features a 3×3 CSC in the CP block (CP CSC), as shown in Figure 26. The CP CSC also provides color controls for
brightness, contrast, saturation and hue adjustments. The DPP block features an automatic CSC. The ADV7611 automatically configures
the DPP CSC depending on the input and output formats and the use of the color control feature.
FIRST STAGE
DECIMATION
FILTER
The configuration of the color space conversion using the CP CSC block and a description of the adjustable register bits are provided in
Figure 27.
CHANNEL A, B, AND C
FROM DPP
CP CSC Selection
MAN_CP_CSC_EN , Addr 44 (CP), Address 0x69[4]
A control to manually enable the CP CSC. By default the CP CSC will be automatically enabled in the case that either a color-space
conversion or video-adjustments (hue, saturation, contrast, brightness) is determined to be required due to other I
MAN_CP_CSC_EN is set to 1, the CP CSC is forced into the enabled state.
Function
MAN_CP_CSC_EN
0 (default)
1
DATA PRE-PROCESSOR
(DPP)
DPP COLOR SPACE
CONVERSION MATRIX
(DPP CSC)

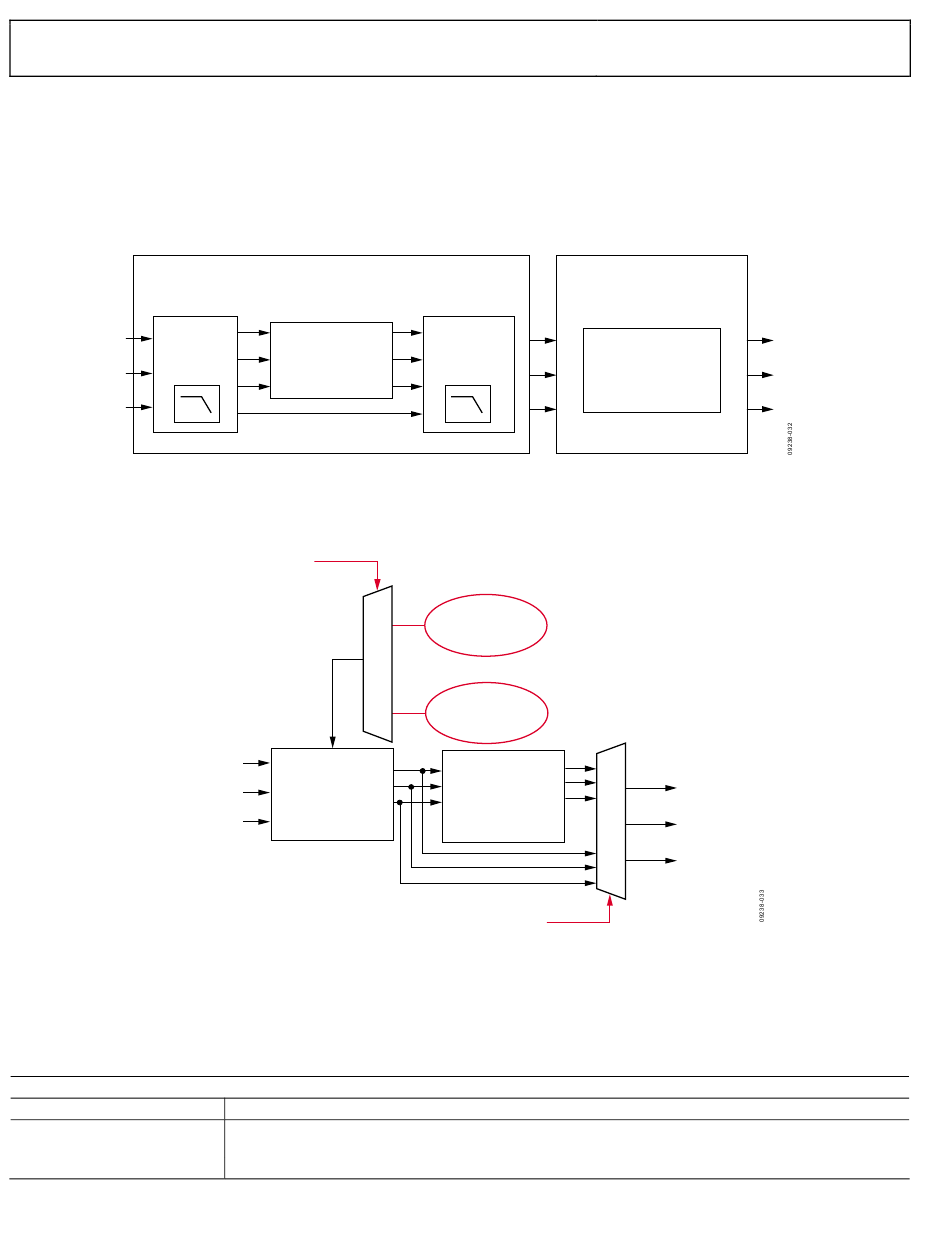

Figure 26. DPP/CP CSC Block Diagram
CSC_COEFF_SEL
0000
1111
CP COLOR SPACE
CONVERSION MATRIX
(CP CSC)
Figure 27. Configuring CP CSC Block
Description
CP CSC will be automatically enabled if required. For example, if either a color-space conversion or video-
adjustments (hue, saturation, contrast, brightness) is determined to be required due to other I
Manual override to force CP-CSC to be enabled.
Rev. A | Page 92 of 184
COMPONENT PROCESSOR
SECOND STAGE
DECIMATION
FILTER CP COLOR SPACE
CONVERSION MATRIX
MANUAL CSC MODE
CSC_SCALE
A1-A4[12:0]
B1-B4[12:0]
C1-C4[12:0]
AUTOMATIC CSC MODE
RGB_OUT
INP_COLOR_SPACE
ALT_GAMMA
CP COLOR CONTROL
CP_BRIGHTNESS
CP_SATURATION
CP_CONTRAST
CP_HUE
VID_ADJ_EN
Hardware User Guide
(CP)
(CP CSC)
CHANNEL A, B, AND C
TO CP CORE
1
0
2
C settings. If
2
C settings.
