Hardware User Guide
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
Table 4. Pin Function Descriptions
Pin No. Mnemonic Type
0 GND Ground
1 HPA_A/INT2 Miscellaneous digital
2 CVDD Power
3 RXA_C− HDMI input
4 RXA_C+ HDMI input
5 TVDD Power
6 RXA_0− HDMI input
7 RXA_0+ HDMI input
8 TVDD Power
9 RXA_1− HDMI input
10 RXA_1+ HDMI input
11 TVDD Power
12 RXA_2− HDMI input
13 RXA_2+ HDMI input
14 CVDD Power
15 P23 Digital video output
16 P22 Digital video output
17 P21 Digital video output
18 P20 Digital video output
19 P19 Digital video output
20 P18 Digital video output
21 P17 Digital video output
22 P16 Digital video output
23 DVDDIO Power
24 DVDD Power
64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49
HPA_A/INT2 1
PIN 1
CVDD 2
RXA_C– 3
RXA_C+
4
TVDD
5
RXA_0–
6
RXA_0+
7
TVDD
8
RXA_1–
9
RXA_1+ 10
TVDD 11
RXA_2– 12
RXA_2+ 13
CVDD
14
P23
15
P22
16
17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
NOTES
1. CONNECT EXPOSED PAD–PIN0 TO GROUND (BOTTOM) .

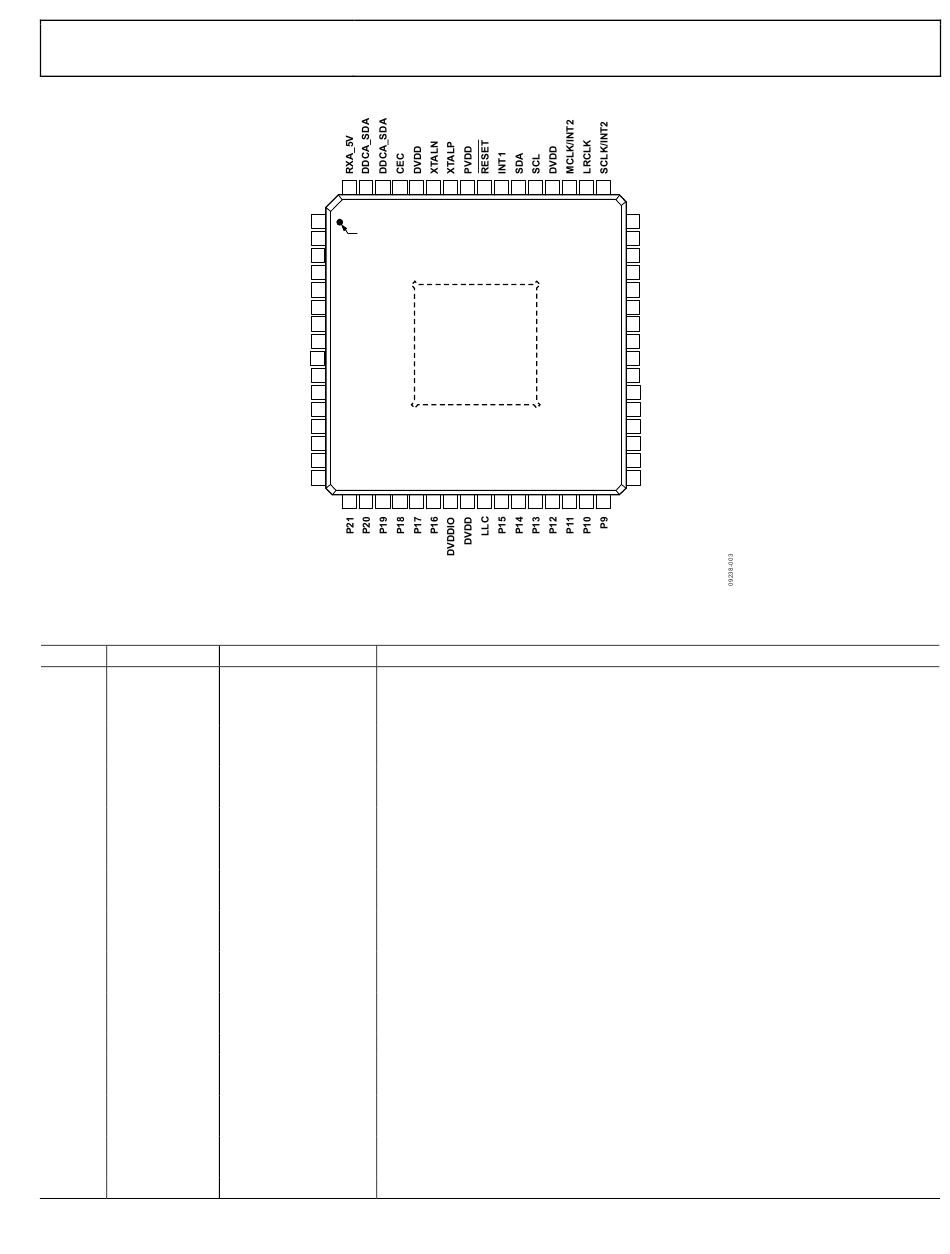

Figure 2. Pin Configuration
Description
Ground.
A dual function pin that can be configured to output Hot Plug Assert signal (for HDMI
Port A) or an Interrupt2 signal.
HDMI Analog Block Supply Voltage (1.8 V).
Digital Input Clock Complement of Port A in the HDMI Interface.
Digital Input Clock True of Port A in the HDMI Interface.
Terminator Supply Voltage (3.3 V).
Digital Input Channel 0 Complement of Port A in the HDMI Interface.
Digital Input Channel 0 True of Port A in the HDMI Interface.
Terminator Supply Voltage (3.3 V).
Digital Input Channel 1 Complement of Port A in the HDMI Interface.
Digital Input Channel 1 True of Port A in the HDMI Interface.
Terminator Supply Voltage (3.3 V).
Digital Input Channel 2 Complement of Port A in the HDMI Interface.
Digital Input Channel 2 True of Port A in the HDMI Interface.
HDMI Analog Block Supply Voltage (1.8 V).
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Video Pixel Output Port.
Digital I/O Supply Voltage (3.3 V).
Digital Core Supply Voltage (1.8 V).
ADV7611
TOP VIEW
(Not to Scale)
Rev. A | Page 11 of 184
48 AP
47 VS/FIELD/ALSB
46 HS
DE
45
DVDDIO
44
P0
43
P1
42
P2
41
DVDD
40
39 P3
38 P4
37 P5
36 P6
P7
35
DVDDIO
34
P8
33
UG-180
