Manual Configuration

Web – Click IP, General, Routing Interface. Select the VLAN through which the
management station is attached, set the IP Address Mode to "Static," and specify a
"Primary" interface. Enter the IP address, and subnet mask, then click Apply.
Click IP, Global Setting. If this stack and management stations exist on other
network segments, then specify the default gateway, and click Apply.
CLI – Specify the management interface, IP address and default gateway.
Console#config
Console(config)#interface vlan 1
Console(config-if)#ip address 10.1.0.253 255.255.255.0
Console(config-if)#exit
Console(config)#ip default-gateway 10.1.0.254
Console(config)#
Setting the Switch's IP Address (IP Version 4)

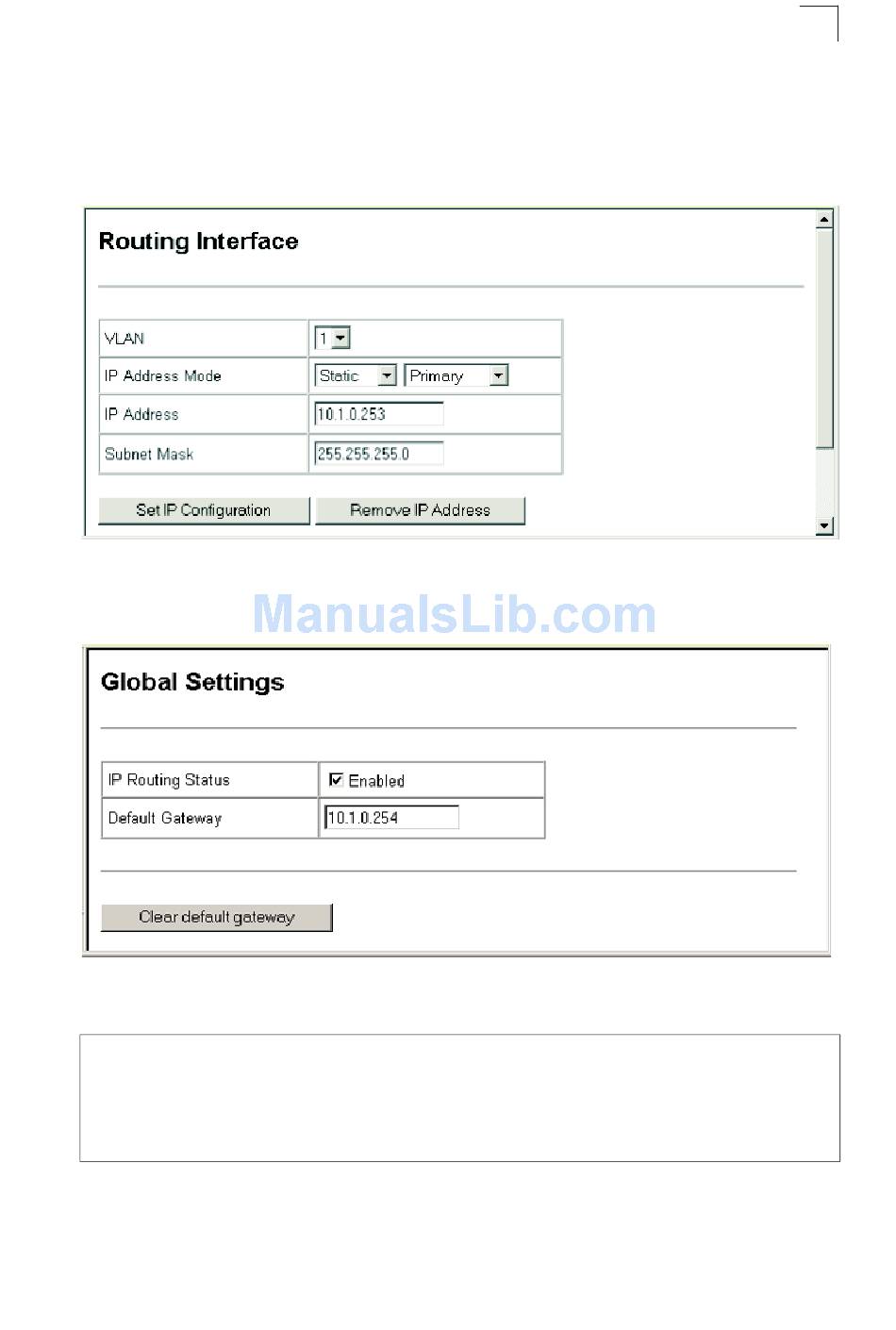

Figure 4-4 IPv4 Interface Configuration - Manual

Figure 4-5 Default Gateway
