Configuration Options

Configurable parameters have a dialog box or a drop-down list. Once a configuration
change has been made on a page, be sure to click on the Apply button to confirm
the new setting. The following table summarizes the web page configuration
buttons.
Button
Apply
Revert
Help
Notes: 1.
To ensure proper screen refresh, be sure that Internet Explorer is configured
so that the setting "Check for newer versions of stored pages" reads "Every
visit to the page".
Internet Explorer 6.x and earlier: This option is available under the menu
"Tools / Internet Options / General / Temporary Internet Files / Settings".
Internet Explorer 7.x: This option is available under "Tools / Internet Options /
General / Browsing History / Settings / Temporary Internet Files".
2.
You may have to manually refresh the screen after making configuration
changes by pressing the browser's refresh button.

Panel Display

The web agent displays an image of the switch's ports. The Mode can be set to
display different information for the ports, including Active (i.e., up or down), Duplex
(i.e., half or full duplex), or Flow Control (i.e., with or without flow control). Clicking on
the image of a port opens the Port Configuration page as described on page 8-3.
SMC8950EM

Table 3-1 Web Page Configuration Buttons

Action
Sets specified values to the system.
Cancels specified values and restores current values prior to pressing Apply.
Links directly to web help.

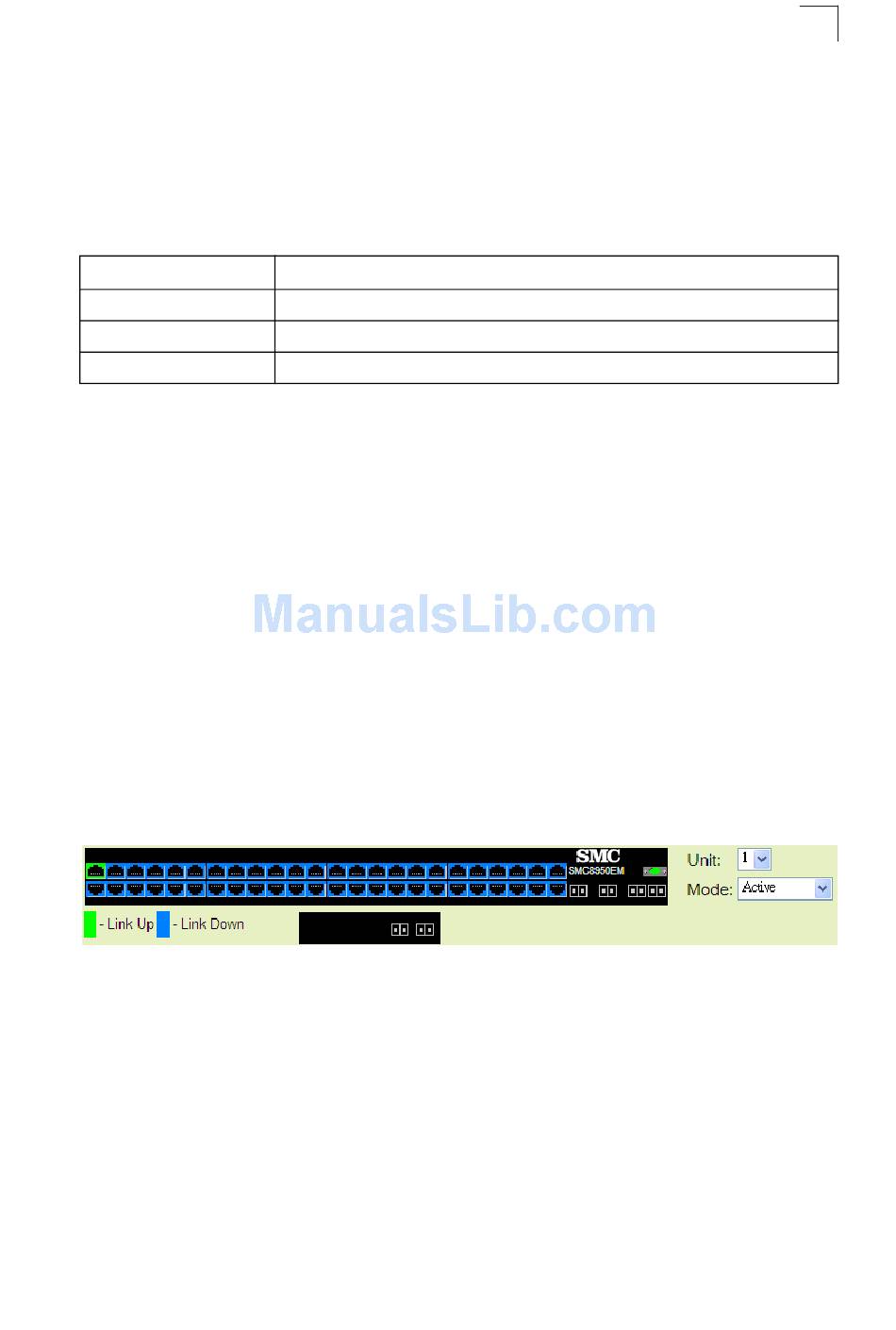

Figure 3-2 Front Panel Indicators

Navigating the Web Browser Interface
3
3-3
