• TFTP Server IP Address – The IP address of the TFTP server that contains the
public key file you wish to import. (Default: 0.0.0.0)
• Source File Name – The public key file to upload.
• Copy Public Key – Initiates the public key TFTP import process. If you are
replacing an outdated public key file, it is not necessary to first delete the original
key from the switch. The import process will overwrite the existing key.
• Delete – Deletes a selected RSA or DSA public key that has already been imported
to the switch.
Web – Click Security, SSH, SSH User Public-Key Settings. Select the user name
and the public-key type from the respective drop-down boxes, input the TFTP server
IP address and the public key source file name, and then click Copy Public Key.

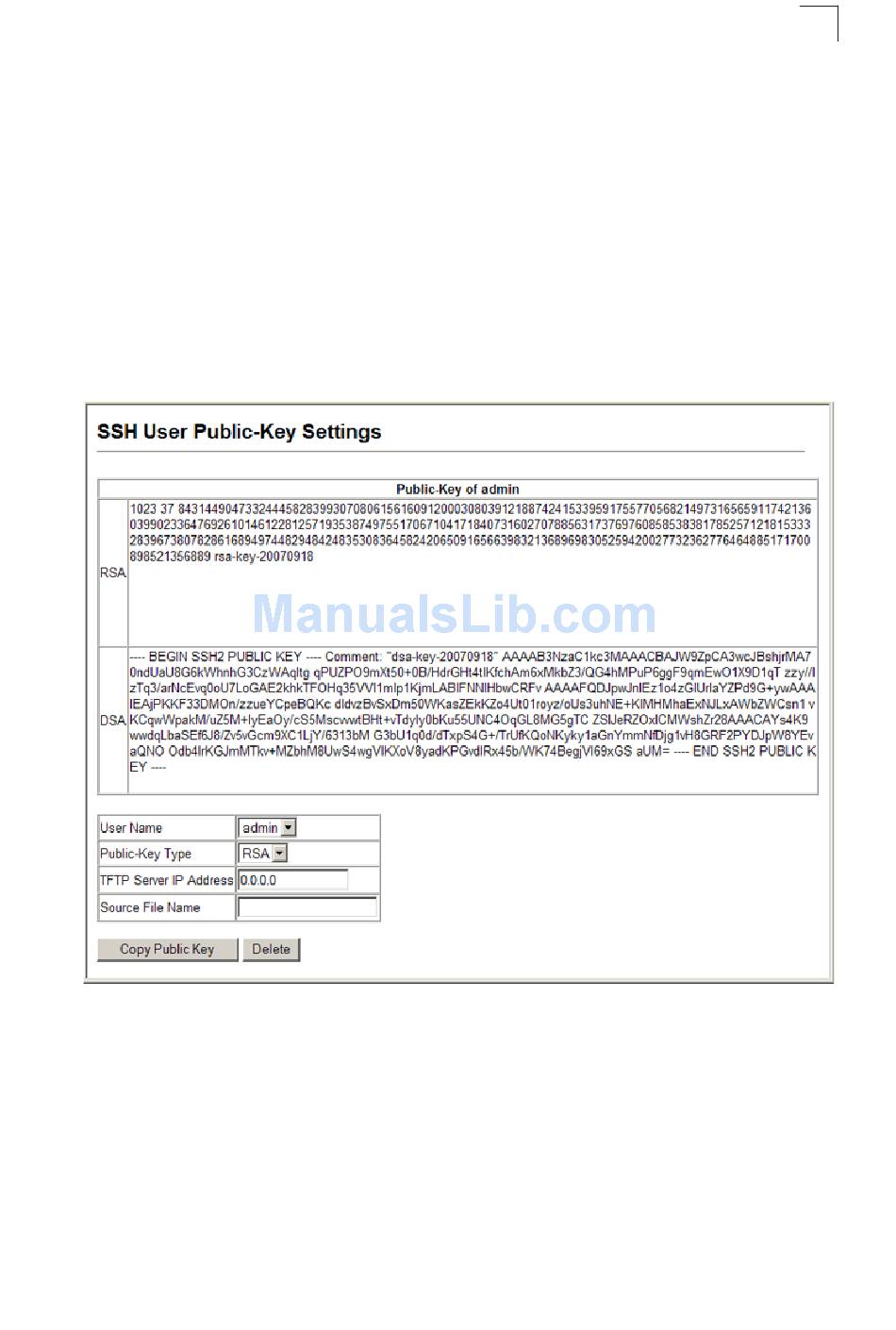

Figure 6-6 SSH User Public-Key Settings
