Figure 20-7 Ospf Area Configuration - SMC Networks TigerStack II SMC8926EM Management Manual

20
Unicast Routing
Web - Click Routing Protocol, OSPF, Area Configuration. Set any area to a stub or
NSSA as required, specify the cost for the default summary route sent into a stub,
and click Apply.
CLI - This example configures area 0.0.0.1 as a normal area, area 0.0.0.2 as a stub,
and area 0.0.0.3 as an NSSA. It also configures the router to propagate a default
summary route into the stub and sets the cost for this default route to 10.
Console(config-router)#network 10.1.1.0 255.255.255.0 area 0.0.0.1
Console(config-router)#area 0.0.0.2 stub summary
Console(config-router)#area 0.0.0.2 default-cost 10
Console(config-router)#area 0.0.0.3 nssa
Console(config-router)#end
20-22

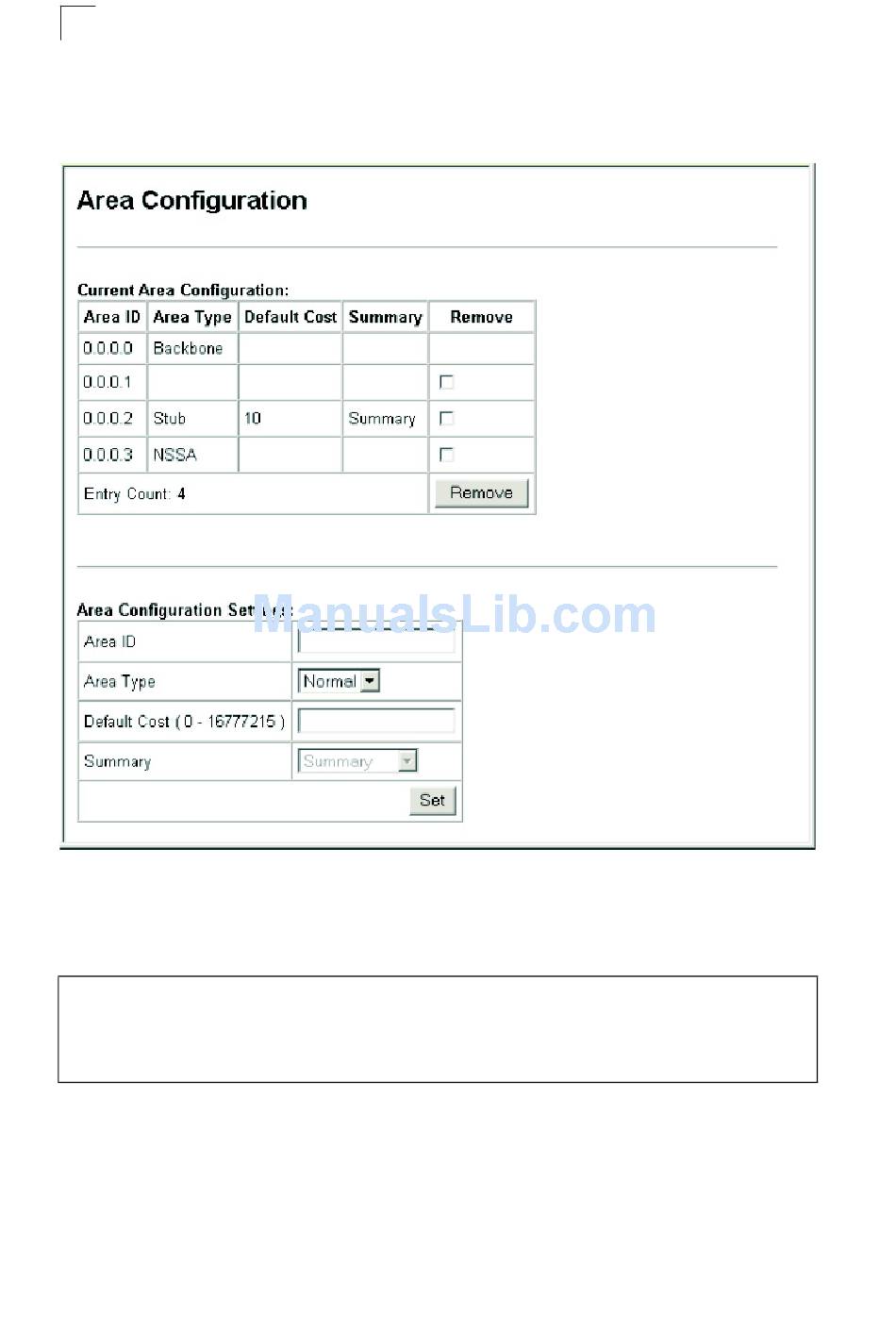

Figure 20-7 OSPF Area Configuration
