5
Simple Network Management Protocol
Web – Click SNMP, SNMPv3, Remote Users. Click New to configure a user name.
In the New User page, define a name and assign it to a group, then click Add to save
the configuration and return to the User Name list. To delete a user, check the box
next to the user name, then click Delete.
CLI – Use the snmp-server user command to configure a new user name and
assign it to a group.
Console(config)#snmp-server user mark group r&d remote 192.168.1.19 v3
auth md5 greenpeace priv des56 einstien
Console(config)#exit
Console#show snmp user
No user exist.
SNMP remote user
EngineId: 80000000030004e2b316c54321
User Name: mark
Authentication Protocol: none
Privacy Protocol: none
Storage Type: nonvolatile
Row Status: active
Console#
5-12

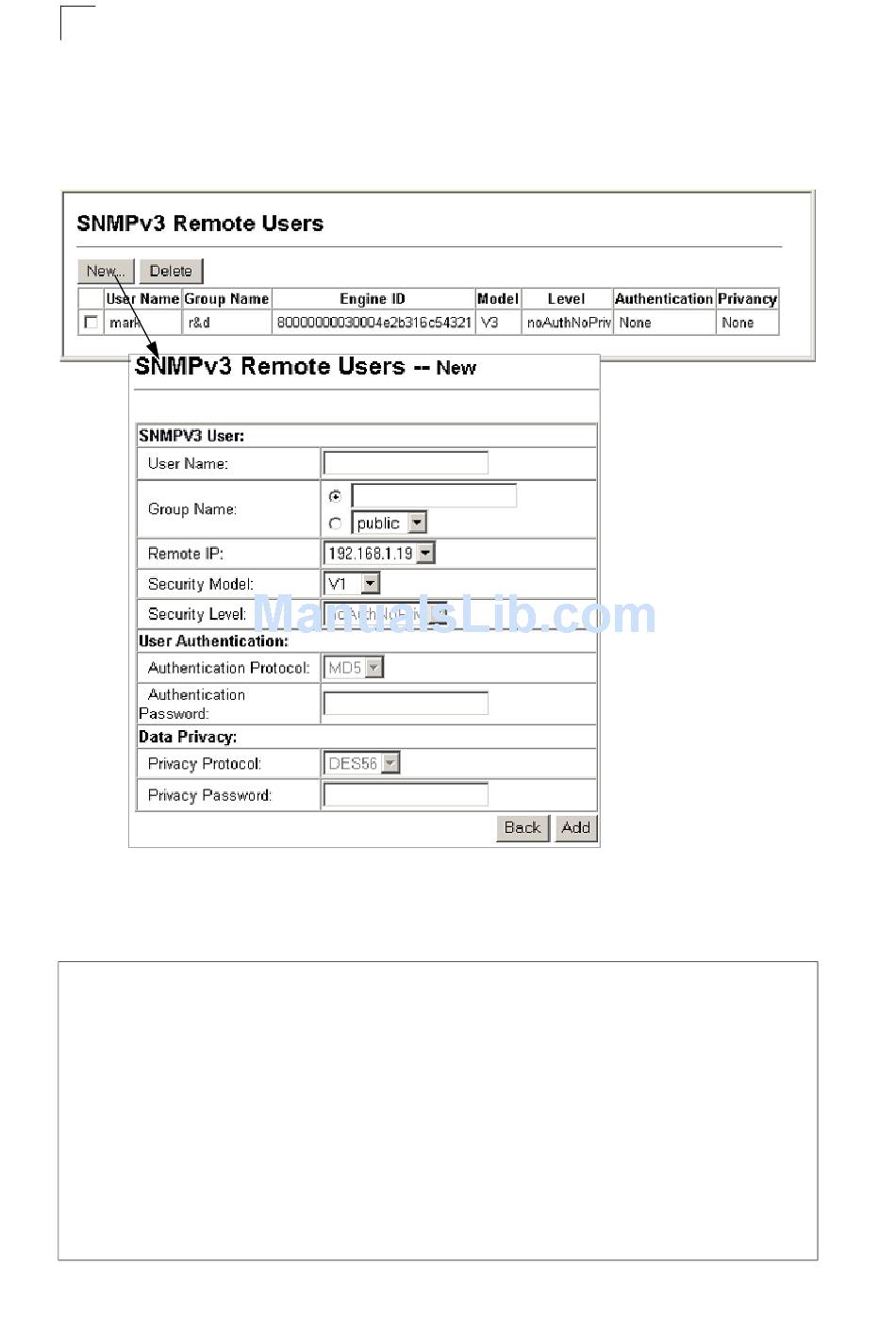

Figure 5-7 Configuring Remote SNMPv3 Users
