Figure 11-4 Vlan Static List - Creating Vlans - SMC Networks TigerStack II SMC8926EM Management Manual

• State (CLI) – Enables or disables the specified VLAN.
- Active: VLAN is operational.
- Suspend: VLAN is suspended; i.e., does not pass packets.
• Add – Adds a new VLAN group to the current list.
• Remove – Removes a VLAN group from the current list. If any port is assigned to
this group as untagged, it will be reassigned to VLAN group 1 as untagged.
Web – Click VLAN, 802.1Q VLAN, Static List. To create a new VLAN, enter the
VLAN ID and VLAN name, mark the Enable checkbox to activate the VLAN, and
then click Add.
CLI – This example creates a new VLAN.
Console(config)#vlan database
Console(config-vlan)#vlan 2 name R&D media ethernet state active
Console(config-vlan)#end
Console#show vlan
VLAN ID:
Type:
Name:
Status:
Ports/Port Channels:
. .
VLAN ID:
Type:
Name:
Status:
Ports/Port Channels:
Console#

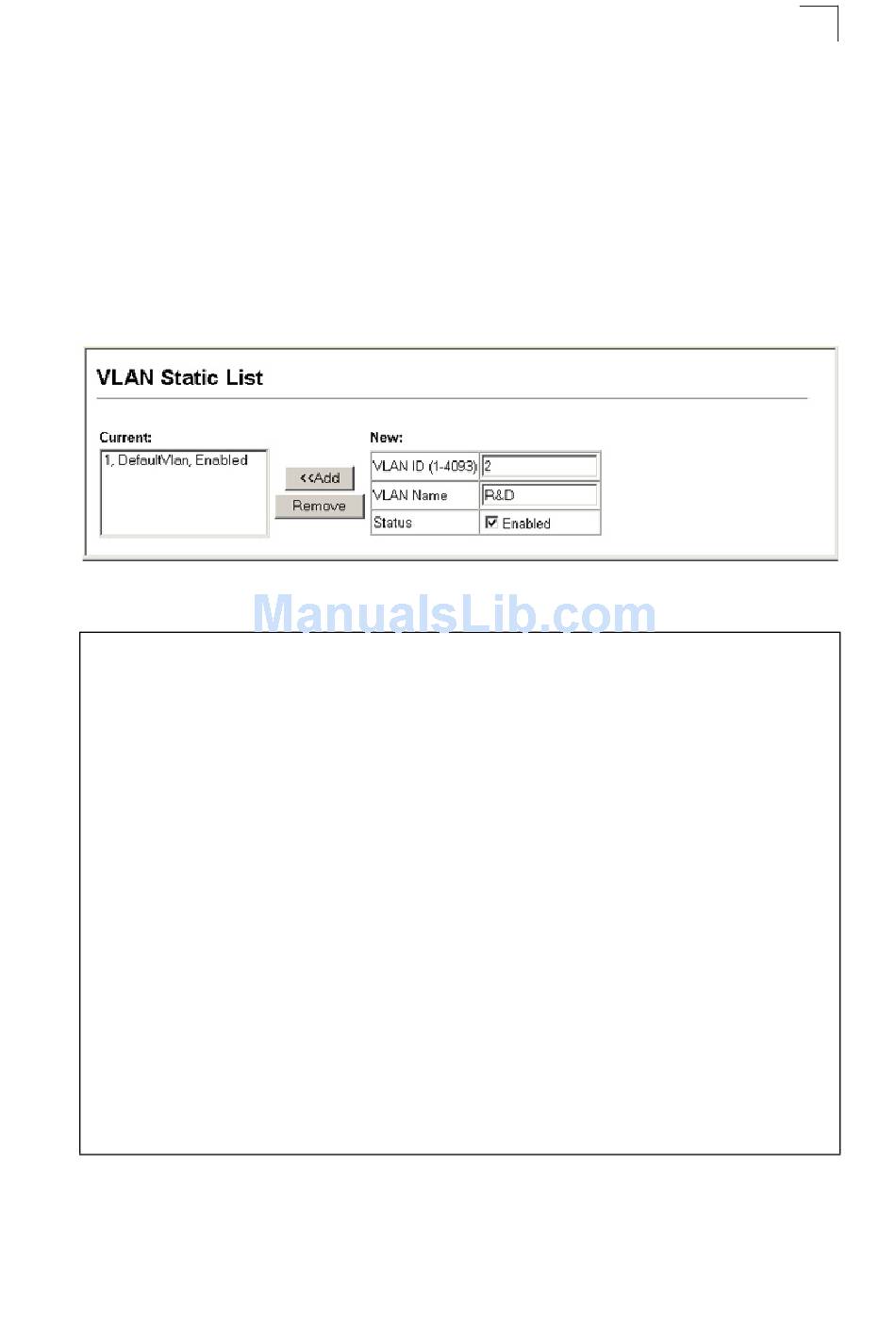

Figure 11-4 VLAN Static List - Creating VLANs

1
Static
DefaultVlan
Active
Eth1/ 1(S) Eth1/ 2(S) Eth1/ 3(S) Eth1/ 4(S) Eth1/ 5(S)
Eth1/ 6(S) Eth1/ 7(S) Eth1/ 8(S) Eth1/11(S) Eth1/12(S)
Eth1/13(S) Eth1/14(S) Eth1/15(S) Eth1/16(S) Eth1/17(S)
Eth1/18(S) Eth1/19(S) Eth1/20(S) Eth1/21(S) Eth1/22(S)
Eth1/23(S) Eth1/24(S) Eth1/25(S) Eth1/26(S) Eth1/27(S)
Eth1/28(S) Eth1/29(S) Eth1/30(S) Eth1/31(S) Eth1/32(S)
Eth1/33(S) Eth1/34(S) Eth1/35(S) Eth1/36(S) Eth1/37(S)
Eth1/38(S) Eth1/39(S) Eth1/40(S) Eth1/41(S) Eth1/42(S)
Eth1/43(S) Eth1/44(S) Eth1/45(S) Eth1/46(S) Eth1/47(S)
Eth1/48(S) Eth1/49(S) Eth1/50(S)
Trunk 1(S).
2
Static
R&D
Active
IEEE 802.1Q VLANs
