20
Unicast Routing
Web - Click Routing Protocol, OSPF, Network Area Address Configuration.
Configure a backbone area that is contiguous with all the other areas in your
network, configure an area for all of the other OSPF interfaces, then click Apply.

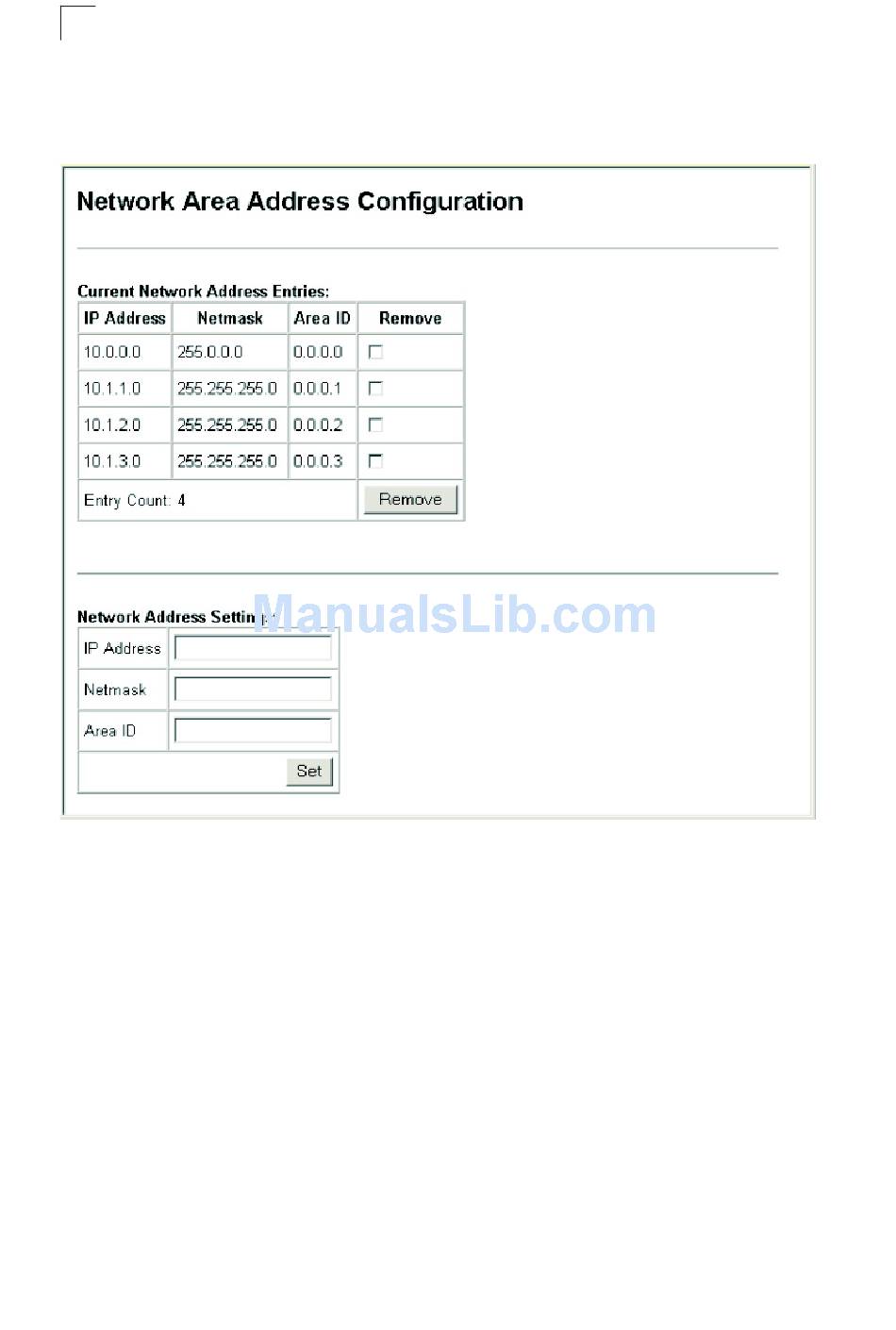

Figure 20-12 OSPF Network Area Address Configuration
20-32
