14
Configuring Quality of Service Parameters
• IP Precedence – An IP Precedence value. (Range: 0-7)
• VLAN – A VLAN. (Range:1-4093)
• IPv6 DSCP – A DSCP value contained in an IPv6 packet. (Range: 0-63)
• Add – Adds specified criteria to the class. Up to 16 items are permitted per class.
• Remove – Deletes the selected criteria from the class.
Web – Click QoS, DiffServ, then click Add Class to create a new class, or Edit Rules
to change the rules of an existing class.

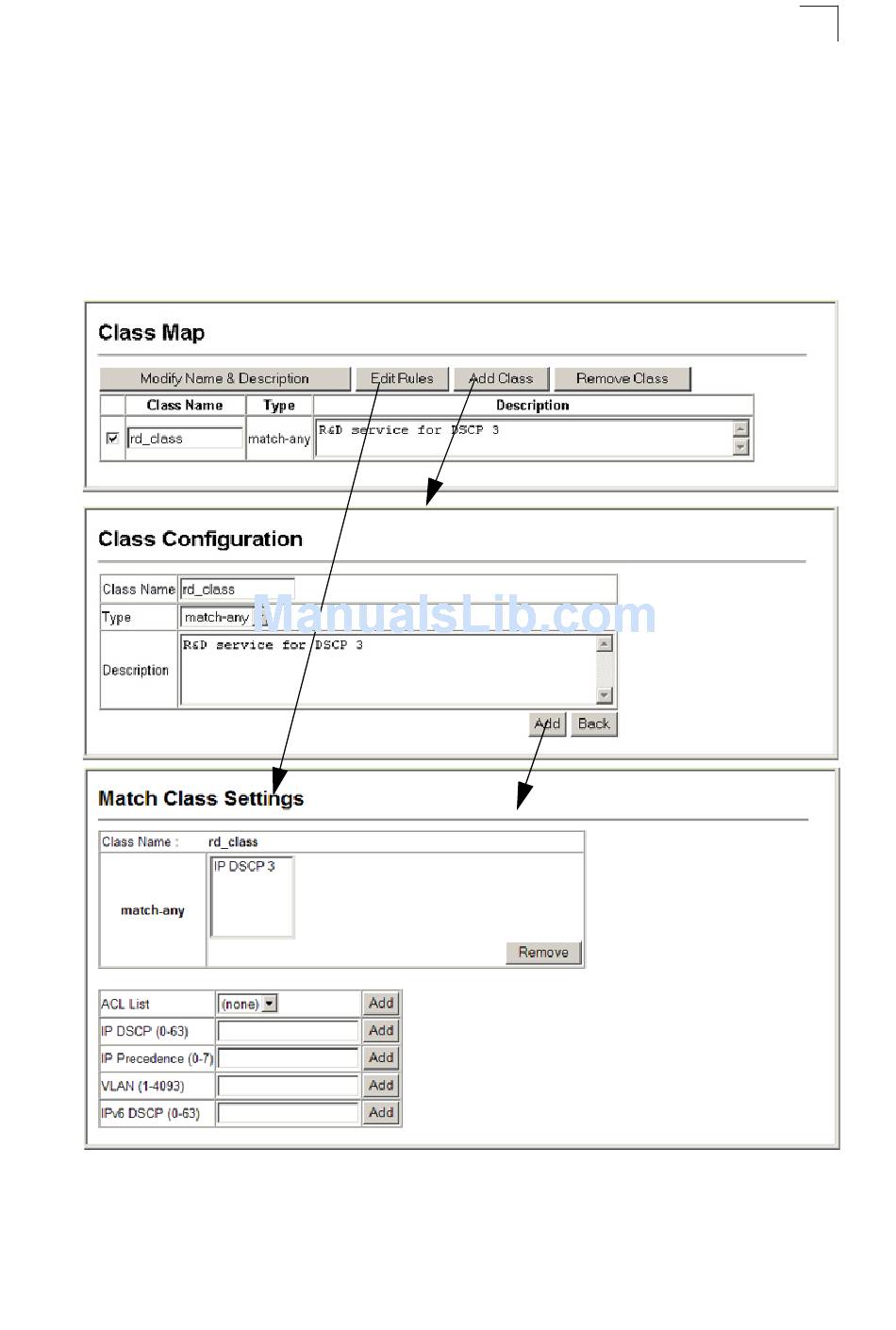

Figure 14-1 Configuring Class Maps

14-3
