Web – Click Port, Port Configuration or Trunk Configuration. Modify the required
interface settings, and click Apply.
CLI – Select the interface, and then enter the required settings.
Console(config)#interface ethernet 1/13
Console(config-if)#description RD SW#13
Console(config-if)#shutdown
.
Console(config-if)#no shutdown
Console(config-if)#no negotiation
Console(config-if)#speed-duplex 100half
.
Console(config-if)#negotiation
Console(config-if)#capabilities 100half
Console(config-if)#capabilities 100full
Console(config-if)#capabilities flowcontrol
Console(config-if)#exit
Console(config)#interface ethernet 1/21
Console(config-if)#media-type copper-forced
Console(config-if)#

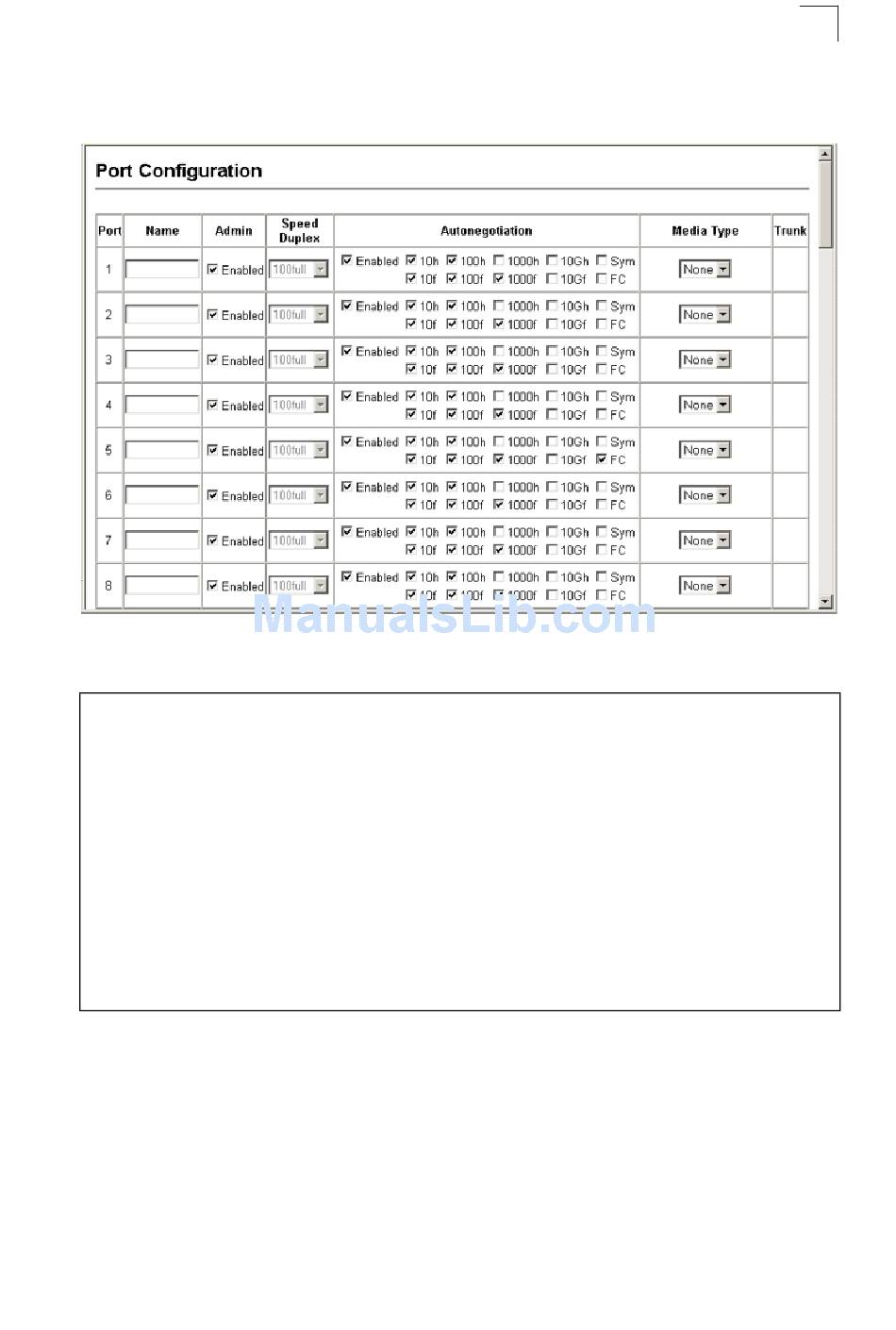

Figure 8-2 Port - Port Configuration

Configuring Interface Connections
8
