Modulite
Following Armrest
5 mm Allen key
l
13 mm wrench
l

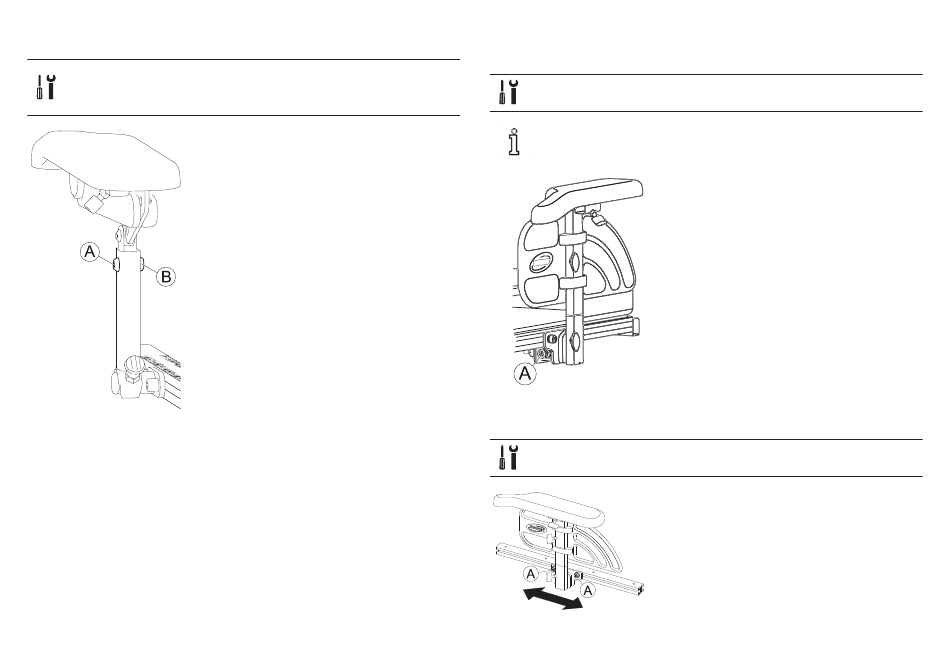

1. Remove screw A and nut B.
2. Adjust component to desired
3. Insert and tighten screw and nut.
22
position.
3.8.2 Adjusting Armrest Width
8 mm Allen key
l
Depending on the side, the screw is accessible from the front
or the rear.
1. Loosen screw A.
2. Adjust component to desired
3. Tighten screw.
3.8.3 Adjusting Armrest Depth
6 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
position.
position.
1656515-G
