Modulite

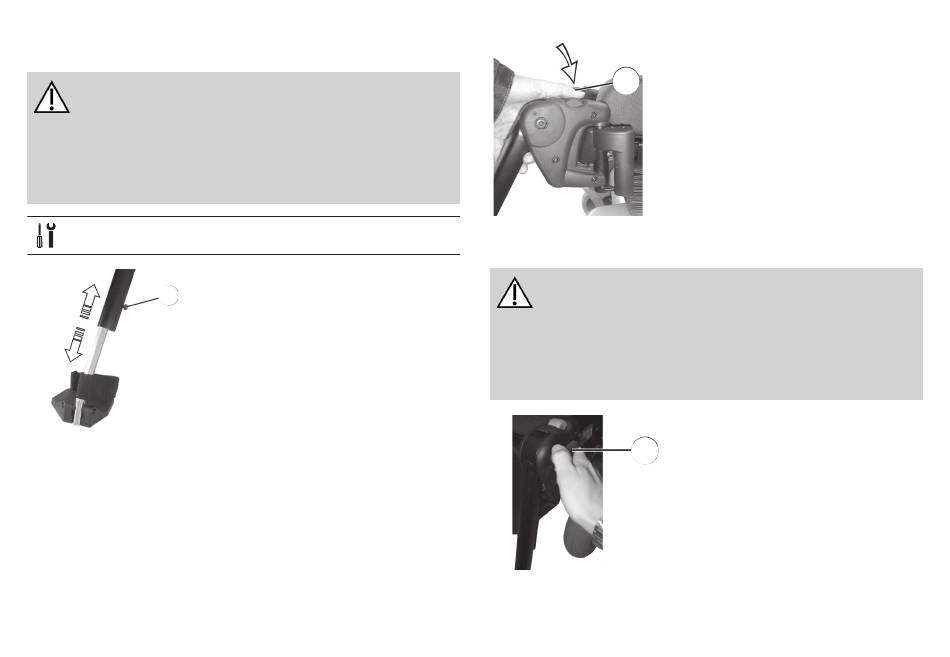

3.17.4 Adjusting Length of Legrest
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
5 mm Allen key
l
A
3.18 Vari-A Legrests
3.18.1 Swivelling Legrest Outward and / or Removing
The small unlocking button is located on the upper section of the
legrest. When the legrest is unlocked, it can be swivelled inward or
outward when getting into the wheelchair as well as being removed
completely.
40
1. Loosen the screw A.
2. Adjust to the desired length.
3. Re-tighten the screw.
A
1. Press the unlocking button A and
2. Remove the legrest in an upward
3.18.2 Setting Angle
CAUTION!
Risk of injury due to incorrect adjustment of the
footrests and legrests
— Before and during every journey it is imperative t o
ensure that the footrests contact neither the c astor
wheels nor the ground.
1.
A
swivel the legrest outward.
direction.
Loosen the locking knob A counter-
clockwise at least one turn.
1656515-G
