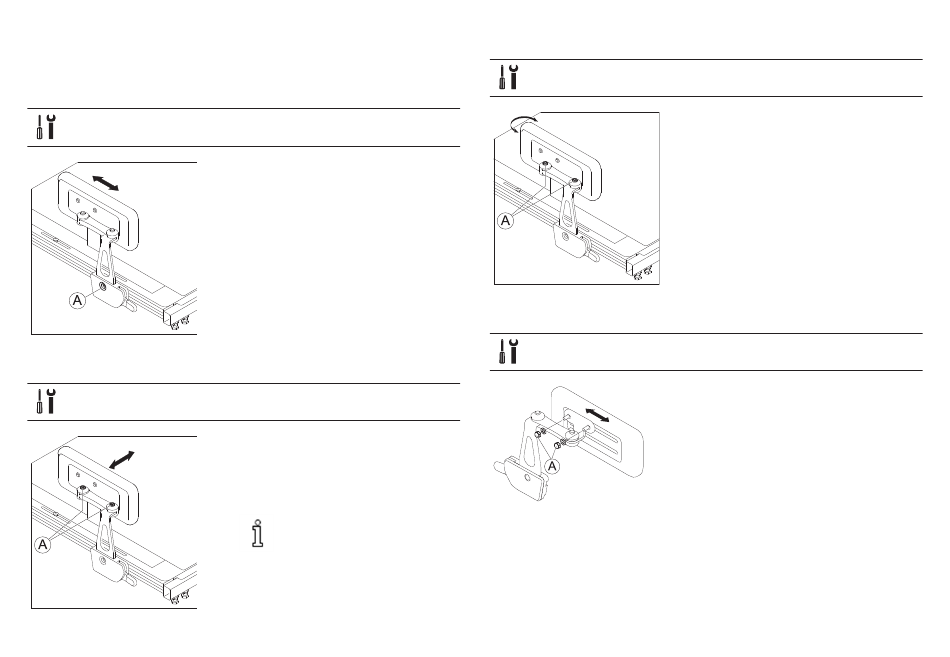

3.13 Adjusting Hip Support with Quick Release
Adjusting Position
5 mm Allen key
l
Adjusting Width
2 x 5 mm Allen key
l
1. Loosen screws A.
2. Adjust hip support to desired
3. Tighten screws.
1656515-G
1. Loosen screw A.
Do not remove it.
2. Adjust hip support to desired
position.
3. Tighten screw.
width.
You can adjust the width
only smaller than the seat
width but not wider.
Adjusting Angle
5 mm Allen key
l
Adjusting Hip Pad Depth
10 mm wrench
l
1. Loosen screws A.
2. Adjust hip support to desired
angle.
3. Tighten screws.
1. Loosen the two screws A.
2. Adjust hip pad to desired depth.
3. Tighten screws.
