5mm Allen key
l
A

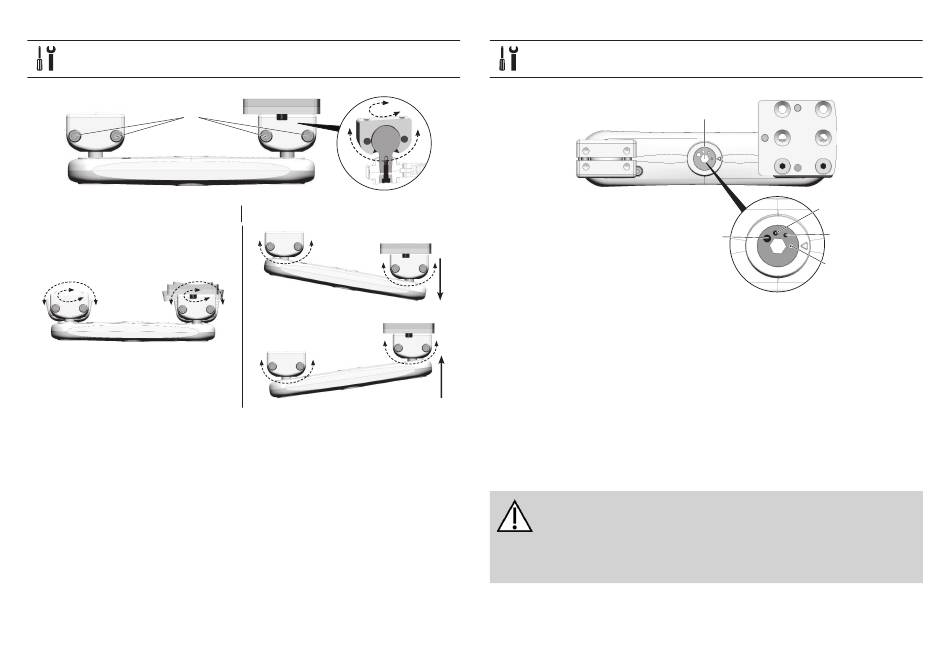

Angle Adjustment
1. Loosen screws A in each ball clamp assembly.
2. Pivot / Rotate the ball clamp assemblies to desired angle / height.
3. Tighten screws, when desired position is reached.
Break-Away Tension Setting Adjustment
The Maxx Resolve Swing-Away Remote Holder uses a tension
adjustable belt-drive to control the "break-away" force required to
reposition the remote. The tension can be adjusted via the cam wheel
at the centre of the swing-away mechanism. There are four tension
setting options available to accommodate the user's strength and
mobility. The break-away tension should be set to fit the user's needs.
1656515-G
360°
Height Adjustment
6 mm Allen key
l
1. Use the cam wheel A to adjust the break-away tension to one of
the four setting options:
B hard
C medium
D easy
E very easy
3.3 Adjusting Nucleus Midline Holder
WARNING!
Risk of Injury or Damage
Loose small parts can lead to choking hazard that may result
in injury or death.
A
C
D
B
E
3 Setup
