3.7 Adjusting Head Array

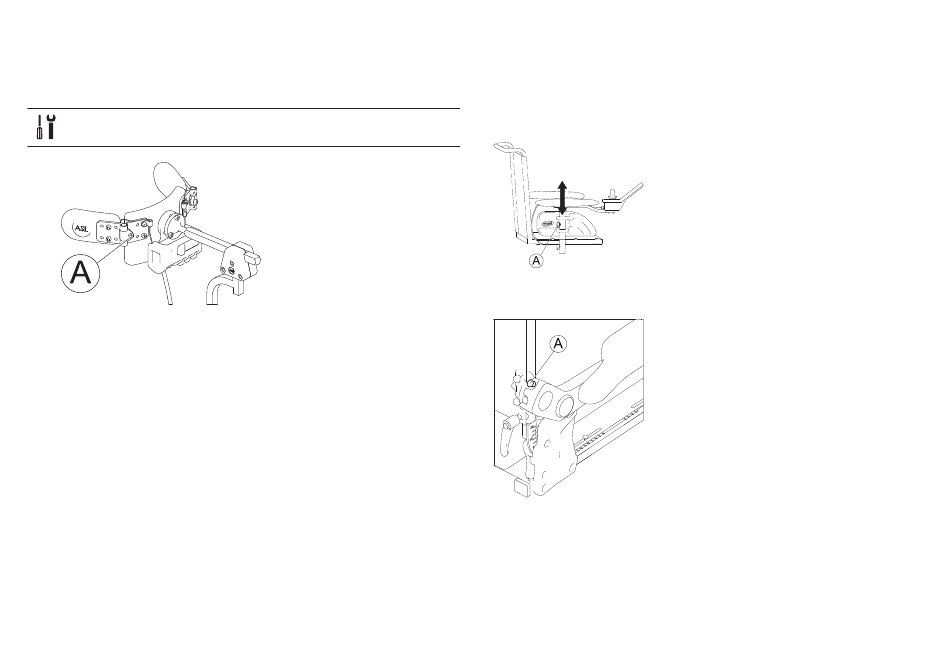

Adjusting Pad Position

5/32 inch (4 mm) Allen key

Adjusting PROTON Wings

Refer to 3.4 Adjusting Swing-Away Mechanism, page 18.

1656515-G

1. Loosen screw A.

2. Adjust pad position.

3. Tighten screw.

3.8 Armrests

3.8.1 Adjusting Armrest Height

Standard Armrest

1. Loosen wing screw A.

2. Adjust component to desired

3. Tighten wing screw.

Flip-up Armrest

1. Loosen thumb screw A.

2. Adjust component to desired

3. Tighten thumb screw.

position.

3 Setup
