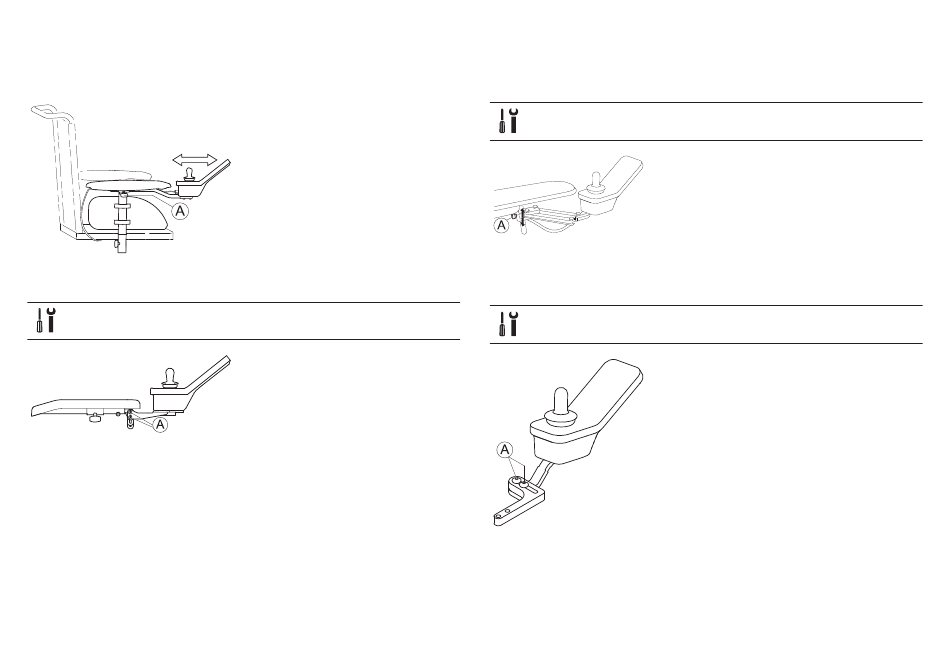

3.2.1 Adjusting Standard Remote Holder
Adjusting Remote for Length of User's Arm
Adjusting Remote Height
3 mm Allen key
l
1656515-G
1. Loosen wing screw A.
2. Adjust component to desired
position.
3. Tighten wing screw.
1. Loosen screws A.
2. Adjust component to desired
position.
3. Tighten screws.
3.2.2 Adjusting Swing Away Remote Holder
Adjusting Remote Height
6 mm Allen key
l
1. Loosen screw A.
2. Adjust component to desired
3. Tighten screw.
Adjusting Remote Offset
The remote can be adjusted by 20 mm sidewise.
3 mm Allen key
l
1. Loosen screws A.
2. Adjust component to desired
3. Tighten screws.
position.
position.
