Invacare Modulite User Manual page 17

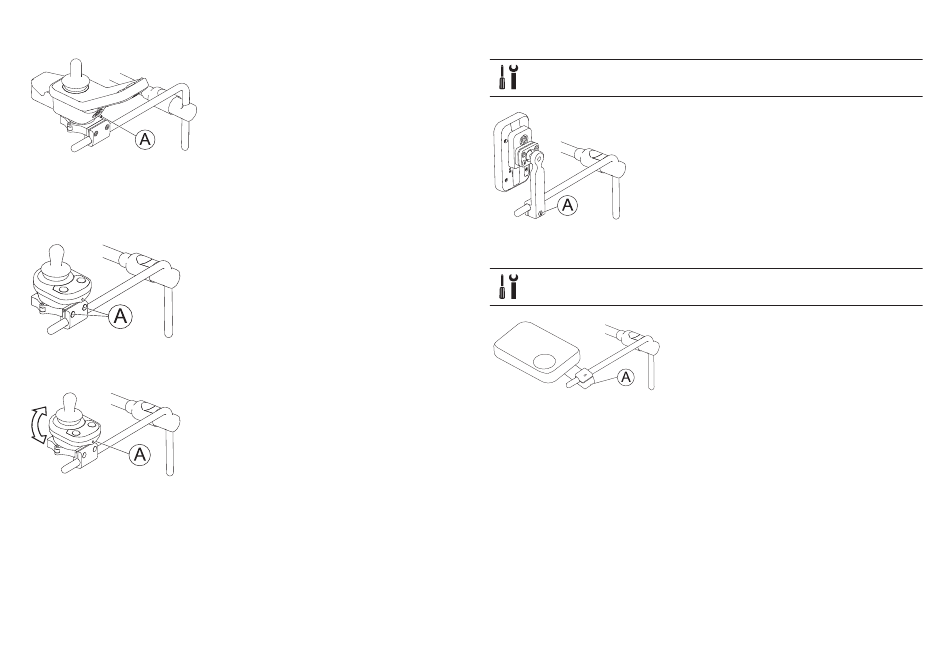

Rotating Remote (DLX-REM110, DLX-REM2XX, DLX-REM400)
1. Loosen screw A.
2. Rotate remote in clamp to desired
3. Tighten screw.
Fig. 3-2 Example of DLX-REM400 adjustment. DLX-REM110, DLX-REM211
and DLX-REM216 are adjusted the same way.
Tilting Remote (DLX-CR400 and DLX-CR400LF)
Rotating Remote (DLX-CR400 and DLX-CR400LF)
1. Loosen screw A (not shown in
2. Rotate remote in clamp to desired
3. Tighten screw.
1656515-G
position.
1. Loosen screws A.
2. Position remote on holder.
3. Tighten screws.
picture).
position.
DLX-REM500
3/16 inch (5 mm) Allen key
l
1. Loosen screw A.
2. Position display on holder.
3. Tighten screw.
ASL Components on Nucleus Tray
3/16 inch (5 mm) Allen key
l
1. Loosen screw A.
2. Position tray on h older.
3. Tighten screw.
Fig. 3-3 Graphic serves as an example.
3 Setup
17
